PJF2NA1K_T0_00001
1000V N-CHANNEL MOSFETManufacturer: Panjit International Inc.
Categories: Single FETs, MOSFETs
Quality Control: Learn More

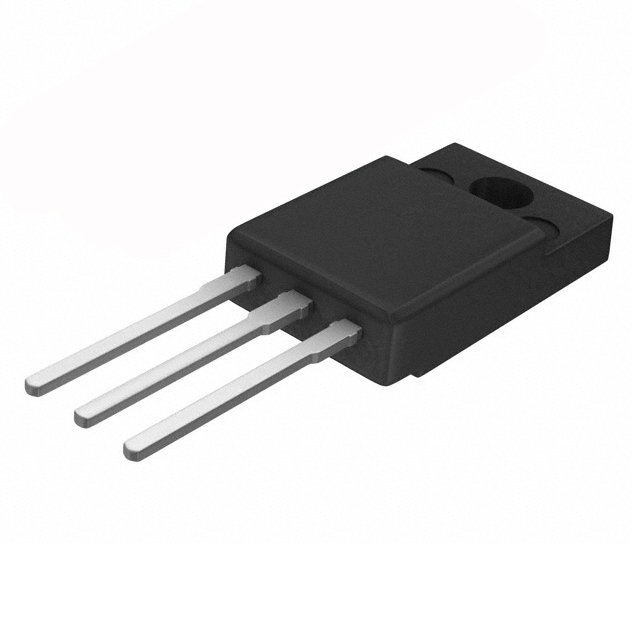

N-Channel 1000 V 2A (Ta) 39W (Tc) Through Hole ITO-220AB
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDownload Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | TO-220-3 Full Pack |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 2A (Ta) |
| Rds On (Max) @ Id, Vgs | 9Ohm @ 1A, 10V |
| FET Feature | - |
| Power Dissipation (Max) | 39W (Tc) |
| Vgs(th) (Max) @ Id | 4V @ 250µA |
| Supplier Device Package | ITO-220AB |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Vgs (Max) | ±30V |
| Drain to Source Voltage (Vdss) | 1000 V |
| Gate Charge (Qg) (Max) @ Vgs | 14 nC @ 10 V |
| Input Capacitance (Ciss) (Max) @ Vds | 385 pF @ 25 V |
