PJD2NA60_R2_00001

Banner
productimage

PJD2NA60_R2_00001

600V N-CHANNEL MOSFET

Manufacturer: Panjit International Inc.

Categories: Single FETs, MOSFETs

Quality Control: Learn More

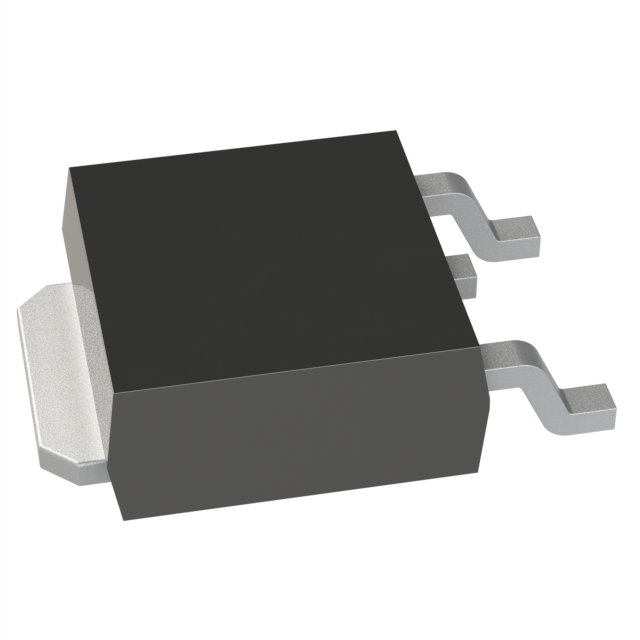

N-Channel 600 V 2A (Ta) Surface Mount TO-252AA

Additional Information

Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 52 week(s)Product Status: ActivePackaging: Tape & Reel (TR)
Technical Details:
PackagingTape & Reel (TR)
Package / CaseTO-252-3, DPAK (2 Leads + Tab), SC-63
Mounting TypeSurface Mount
Operating Temperature-55°C ~ 150°C (TJ)
TechnologyMOSFET (Metal Oxide)
FET TypeN-Channel
Current - Continuous Drain (Id) @ 25°C2A (Ta)
Rds On (Max) @ Id, Vgs4.4Ohm @ 1A, 10V
FET Feature-
Power Dissipation (Max)-
Vgs(th) (Max) @ Id4V @ 250µA
Supplier Device PackageTO-252AA
Drive Voltage (Max Rds On, Min Rds On)10V
Vgs (Max)±30V
Drain to Source Voltage (Vdss)600 V
Gate Charge (Qg) (Max) @ Vgs5.7 nC @ 10 V
Input Capacitance (Ciss) (Max) @ Vds257 pF @ 25 V
