SVC12120V_R1_00001
ULTRA LOW VF SCHOTTKY RECTIFIERManufacturer: Panjit International Inc.
Categories: Single Diodes
Quality Control: Learn More

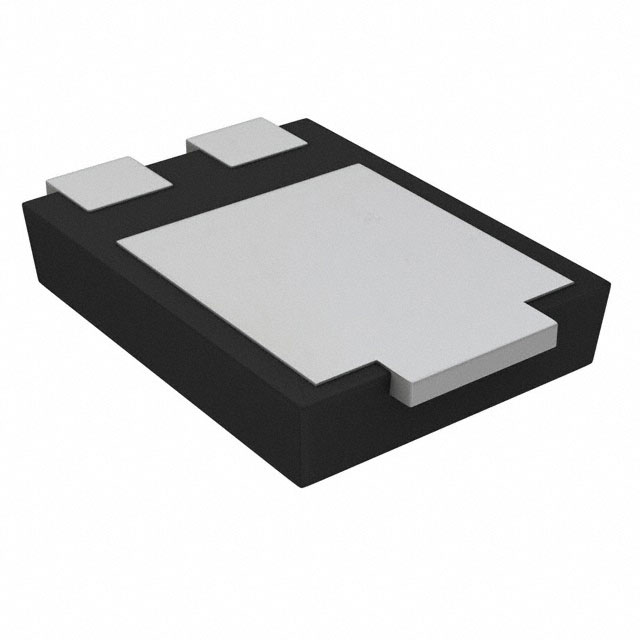

Diode 120 V 12A Surface Mount TO-277
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 8 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | TO-277, 3-PowerDFN |
| Mounting Type | Surface Mount |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Technology | Schottky |
| Capacitance @ Vr, F | - |
| Current - Average Rectified (Io) | 12A |
| Supplier Device Package | TO-277 |
| Operating Temperature - Junction | -55°C ~ 150°C |
| Voltage - DC Reverse (Vr) (Max) | 120 V |
| Voltage - Forward (Vf) (Max) @ If | 770 mV @ 12 A |
| Current - Reverse Leakage @ Vr | 100 µA @ 120 V |
Request a Quote
