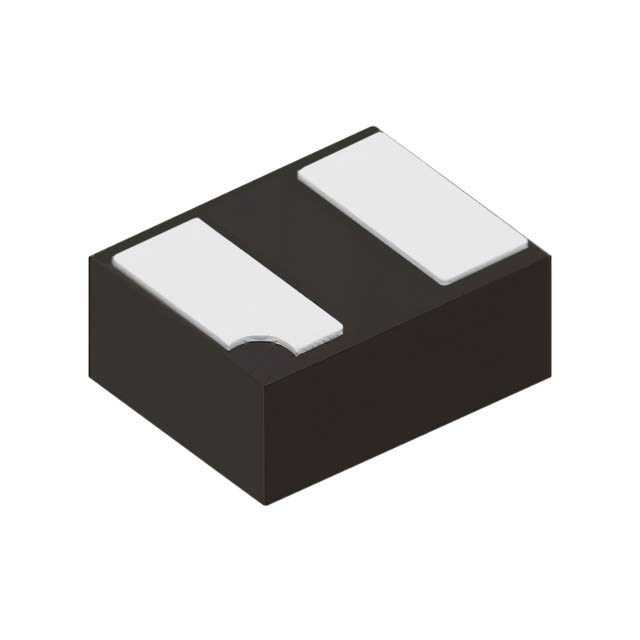

SBA120Q_R1_00001
DIODE SCHOTTKY 20V 1A DFN1610-2Manufacturer: Panjit International Inc.
Categories: Single Diodes
Quality Control: Learn More
Diode 20 V 1A Surface Mount DFN1610-2
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 14 week(s)Product Status: Not For New DesignsPackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 2-UDFN |
| Mounting Type | Surface Mount |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Technology | Schottky |
| Capacitance @ Vr, F | - |
| Current - Average Rectified (Io) | 1A |
| Supplier Device Package | DFN1610-2 |
| Operating Temperature - Junction | -55°C ~ 150°C |
| Voltage - DC Reverse (Vr) (Max) | 20 V |
| Voltage - Forward (Vf) (Max) @ If | 450 mV @ 1 A |
| Current - Reverse Leakage @ Vr | 100 µA @ 20 V |
Request a Quote
