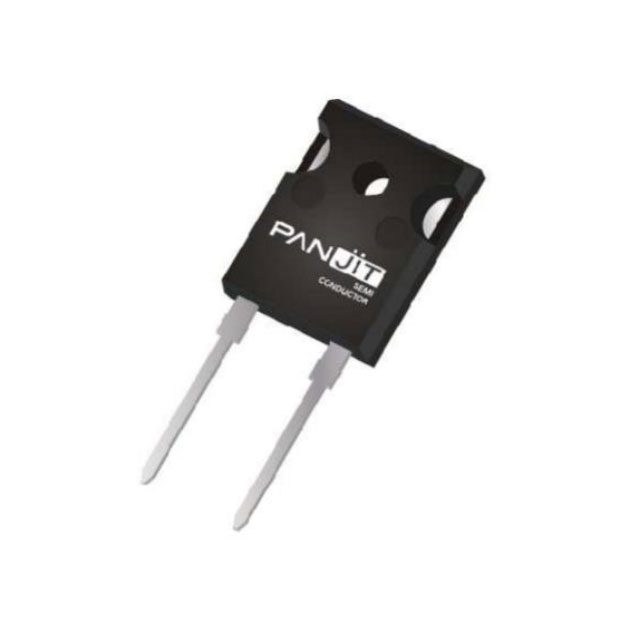

PCDH20120G1_T0_00601
1200V SIC SCHOTTKY BARRIER DIODEManufacturer: Panjit International Inc.
Categories: Single Diodes
Quality Control: Learn More
Diode 1200 V 20A Through Hole TO-247AD-2
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: 20 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | TO-247-2 |
| Mounting Type | Through Hole |
| Speed | No Recovery Time > 500mA (Io) |
| Reverse Recovery Time (trr) | 0 ns |
| Technology | SiC (Silicon Carbide) Schottky |
| Capacitance @ Vr, F | 1023pF @ 1V, 1MHz |
| Current - Average Rectified (Io) | 20A |
| Supplier Device Package | TO-247AD-2 |
| Operating Temperature - Junction | -55°C ~ 175°C |
| Voltage - DC Reverse (Vr) (Max) | 1200 V |
| Voltage - Forward (Vf) (Max) @ If | 1.7 V @ 20 A |
| Current - Reverse Leakage @ Vr | 180 µA @ 1200 V |
