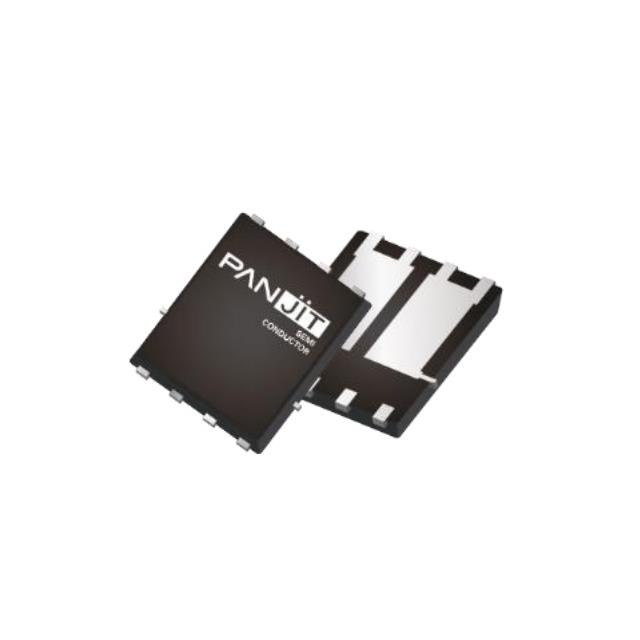

PJQ5948-AU_R2_002A1
40V DUAL N-CHANNEL ENHANCEMENT MManufacturer: Panjit International Inc.
Categories: FET, MOSFET Arrays
Quality Control: Learn More
Mosfet Array 40V 10.6A (Ta), 37A (Tc) 2.5W (Ta), 30W (Tc) Surface Mount DFN5060B-8
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-PowerTDFN |
| Mounting Type | Surface Mount |
| Configuration | 2 N-Channel |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| Power - Max | 2.5W (Ta), 30W (Tc) |
| Drain to Source Voltage (Vdss) | 40V |
| Current - Continuous Drain (Id) @ 25°C | 10.6A (Ta), 37A (Tc) |
| Input Capacitance (Ciss) (Max) @ Vds | 778pF @ 25V |
| Rds On (Max) @ Id, Vgs | 12.3mOhm @ 10A, 10V |
| Gate Charge (Qg) (Max) @ Vgs | 13nC @ 10V |
| FET Feature | Logic Level Gate |
| Vgs(th) (Max) @ Id | 2.3V @ 50µA |
| Supplier Device Package | DFN5060B-8 |
| Grade | Automotive |
| Qualification | AEC-Q101 |
