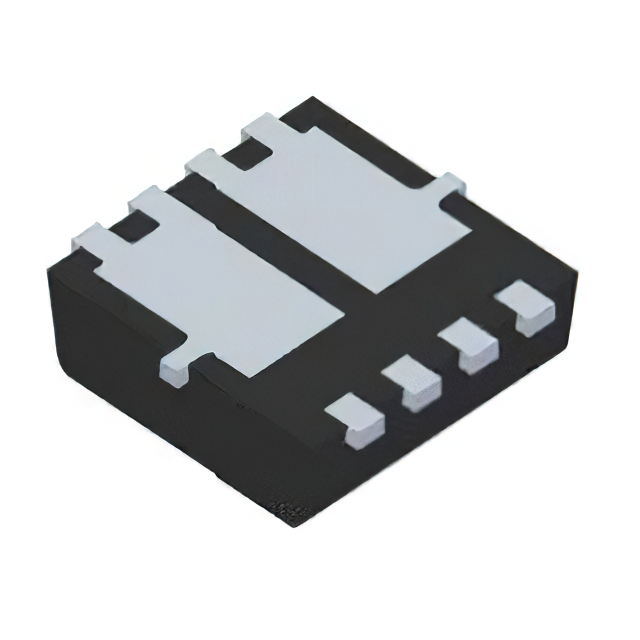

PJQ4602_R1_00001
MOSFET N/P-CH 30V 6.4A 8DFNManufacturer: Panjit International Inc.
Categories: FET, MOSFET Arrays
Quality Control: Learn More
Mosfet Array 30V 6.4A (Ta), 18.5A (Tc), 6.4A (Ta), 18A (Tc) 2W (Ta), 17.8W (Tc) Surface Mount DFN3030B-8
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: Not For New DesignsPackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-PowerWDFN |
| Mounting Type | Surface Mount |
| Configuration | N and P-Channel Complementary |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| Power - Max | 2W (Ta), 17.8W (Tc) |
| Drain to Source Voltage (Vdss) | 30V |
| Current - Continuous Drain (Id) @ 25°C | 6.4A (Ta), 18.5A (Tc), 6.4A (Ta), 18A (Tc) |
| Input Capacitance (Ciss) (Max) @ Vds | 343pF @ 15V, 870pF @ 15V |
| Rds On (Max) @ Id, Vgs | 28mOhm @ 6A, 10V, 31mOhm @ 4A, 10V |
| Gate Charge (Qg) (Max) @ Vgs | 7.8nC @ 10V |
| FET Feature | - |
| Vgs(th) (Max) @ Id | 2.1V @ 250µA, 2.5V @ 250µA |
| Supplier Device Package | DFN3030B-8 |
