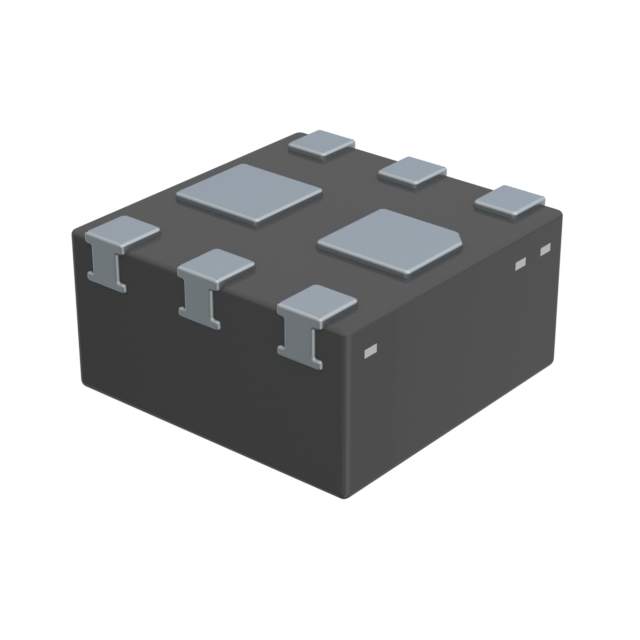

PJQ1821_R1_00001
MOSFET 2P-CH 20V 0.6A 6DFNManufacturer: Panjit International Inc.
Categories: FET, MOSFET Arrays
Quality Control: Learn More
Mosfet Array 20V 600mA (Ta) 400mW (Ta) Surface Mount DFN1010-6L
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: Not For New DesignsPackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 6-UFDFN |
| Mounting Type | Surface Mount |
| Configuration | 2 P-Channel (Dual) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| Power - Max | 400mW (Ta) |
| Drain to Source Voltage (Vdss) | 20V |
| Current - Continuous Drain (Id) @ 25°C | 600mA (Ta) |
| Input Capacitance (Ciss) (Max) @ Vds | 51pF @ 10V |
| Rds On (Max) @ Id, Vgs | 600mOhm @ 300mA, 4.5V |
| Gate Charge (Qg) (Max) @ Vgs | 1.1nC @ 4.5V |
| FET Feature | - |
| Vgs(th) (Max) @ Id | 1V @ 250µA |
| Supplier Device Package | DFN1010-6L |
