BAT54CTB_R1_00001

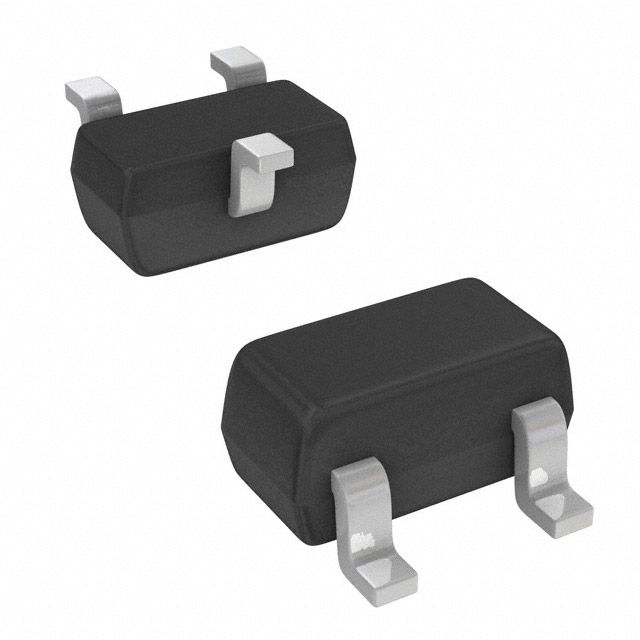

SOT-523, SKYManufacturer: Panjit International Inc.
Categories: Diode Arrays
Quality Control: Learn More
Diode Array 1 Pair Common Cathode 30 V 200mA Surface Mount SC-89, SOT-490
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 14 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | SC-89, SOT-490 |
| Mounting Type | Surface Mount |
| Speed | Small Signal =< 200mA (Io), Any Speed |
| Technology | Schottky |
| Diode Configuration | 1 Pair Common Cathode |
| Current - Average Rectified (Io) (per Diode) | 200mA |
| Supplier Device Package | SOT-523 Flat Leads |
| Operating Temperature - Junction | -55°C ~ 125°C |
| Voltage - DC Reverse (Vr) (Max) | 30 V |
| Voltage - Forward (Vf) (Max) @ If | 600 mV @ 100 mA |
| Current - Reverse Leakage @ Vr | 2 µA @ 25 V |
