SA1000-1
CONN SPLICE 1000 MCM CRIMPManufacturer: Panduit Corp
Categories: Wire Splice Connectors
Quality Control: Learn More

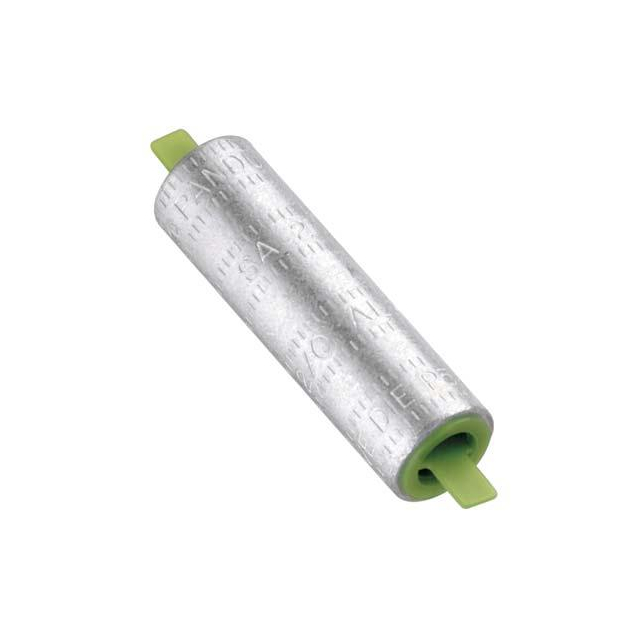

Panduit Corp's Pan-Lug™ SA1000-1 is a high-capacity, inline butt splice connector designed for crimp termination of 1000 MCM (kcmil) conductors. This non-insulated, bulk-packaged component features individual openings for two wire entries, facilitating a secure and reliable splice. The connector is equipped with a protective cap and gel filling for enhanced environmental sealing. Its robust construction makes it suitable for demanding applications within the power distribution and industrial automation sectors. The SA1000-1 ensures efficient and durable electrical connections for large-gauge conductors.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Cap, Gel Filled |
| Packaging | Bulk |
| Color | Brown |
| Wire Gauge | 1000MCM (kcmil) |
| Insulation | Non-Insulated |
| Terminal Type | Butt Splice, Inline, Individual Openings |
| Termination | Crimp |
| Number of Wire Entries | 2 |
Request a Quote
