RSC4/0-1/0-X
CONN SPLICE 4/0AWG-1/0AWG CRIMPManufacturer: Panduit Corp
Categories: Wire Splice Connectors
Quality Control: Learn More

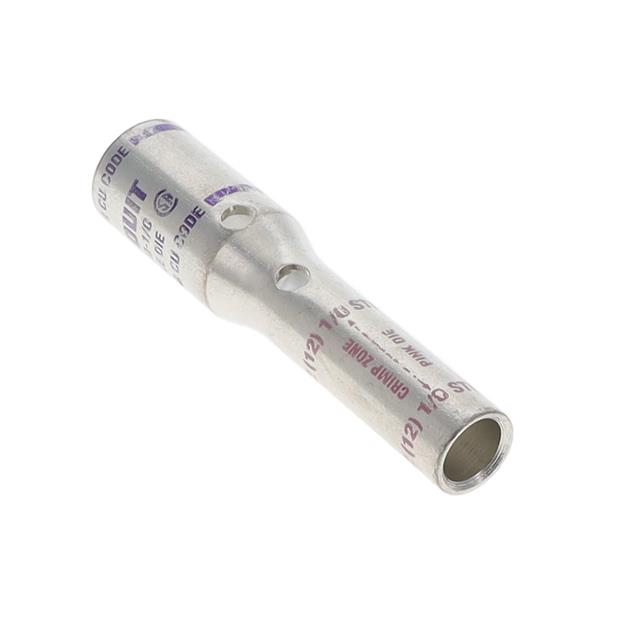

Panduit Corp Pan-Lug™ RSC4-0-1-0-X is a non-insulated, inline butt splice connector designed for terminating electrical conductors. This crimp-style splice features individual openings for each wire entry, facilitating a secure and reliable connection. It is engineered to join wires ranging from 4/0 AWG to 1/0 AWG, with a step-up/step-down capability. The connector is supplied in bulk packaging and is distinguished by its purple and pink color coding. This component is utilized in industrial power distribution, heavy equipment manufacturing, and renewable energy systems where robust wire termination is critical.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Features | Step Up/Step Down |
| Packaging | Bulk |
| Color | Purple, Pink |
| Wire Gauge | 4/0 AWG to 1/0 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Butt Splice, Inline, Individual Openings |
| Termination | Crimp |
| Number of Wire Entries | 2 |
