HC8-3
CONN SPLICE 1-4AWG SCREW PAN-LUGManufacturer: Panduit Corp
Categories: Wire Splice Connectors
Quality Control: Learn More

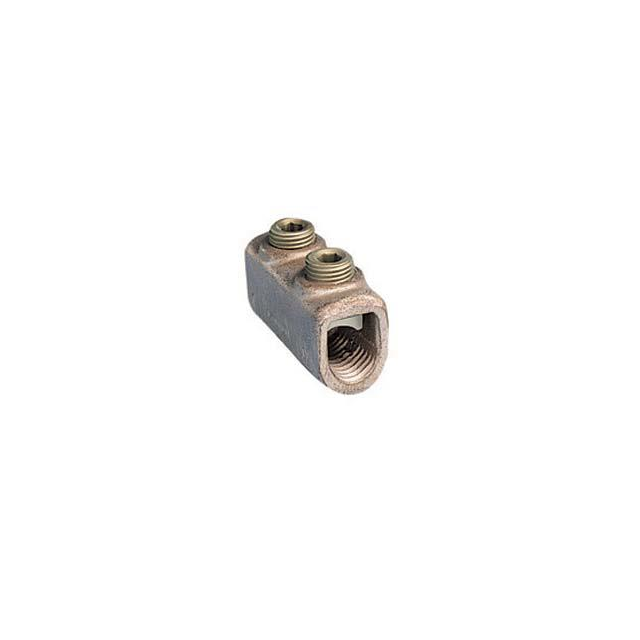

Panduit Corp's HC8-3 is a non-insulated, inline butt splice from the Pan-Lug™ series. This terminal connector is designed for screw termination and accommodates wire gauges from 1 to 4 AWG, featuring individual openings for each wire entry. The HC8-3 boasts a serrated mating area to enhance conductivity and secure connections. Its robust construction makes it suitable for demanding applications across various industries, including power distribution, industrial automation, and telecommunications. This component is supplied in bulk packaging for efficient integration into large-scale manufacturing processes. The terminal type is a butt splice with individual openings.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Serrated Mating Area |
| Packaging | Bulk |
| Color | - |
| Wire Gauge | 1-4 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Butt Splice, Inline, Individual Openings |
| Termination | Screw |
| Number of Wire Entries | 2 |
Request a Quote
