PV18-P47-E
CONN WIRE PIN TERM 18-22AWGManufacturer: Panduit Corp
Categories: Wire Pin Connectors
Quality Control: Learn More
Panduit Corp PV18-P47-E is a red, insulated wire pin terminal connector designed for 18-22 AWG wire. This component features a brazed seam for enhanced durability and a reliable crimp termination. The overall length is 0.970 inches (24.64mm), with a pin length of 0.490 inches (12.45mm). The insulation diameter measures 0.150 inches (3.81mm). This terminal is supplied in bulk packaging. It is commonly utilized in industrial automation, automotive, and general electronics applications where secure wire termination is critical.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Brazed Seam |
| Packaging | Bulk |
| Color | Red |
| Wire Gauge | 18-22 AWG |
| Insulation | Insulated |
| Pin Diameter | - |
| Length - Overall | 0.970"" (24.64mm) |
| Termination | Crimp |
| Length - Pin | 0.490"" (12.45mm) |
| Insulation Diameter | 0.150"" (3.81mm) |
Request a Quote
Clients Also Buy

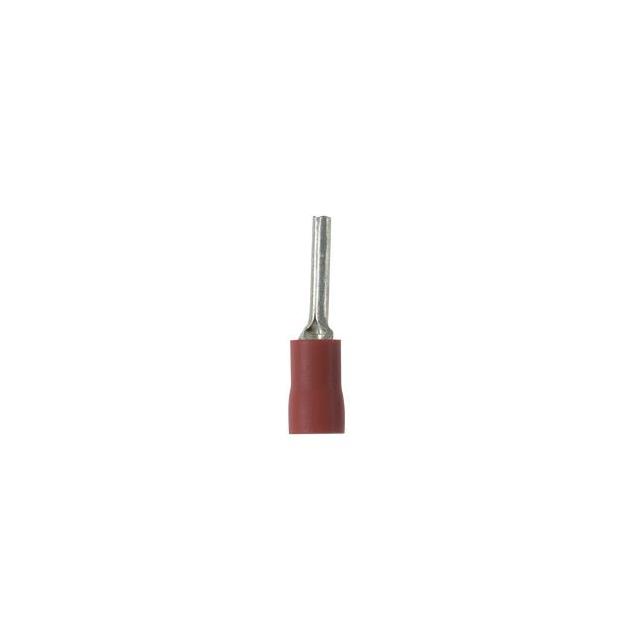

EV18-P47BK-L
STRONGHOLD PIN TERMINAL, VINYL I
PMV1-P12B-3K
CONN WIRE PIN TERM 18-20AWG

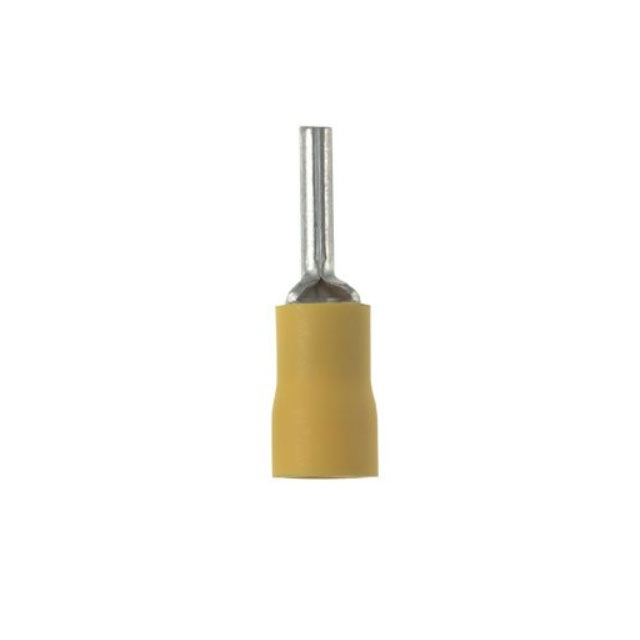

PV10-P55-DY
