PV10-P55-EYY
CONN WIRE PIN TERM 10-12AWGManufacturer: Panduit Corp
Categories: Wire Pin Connectors
Quality Control: Learn More

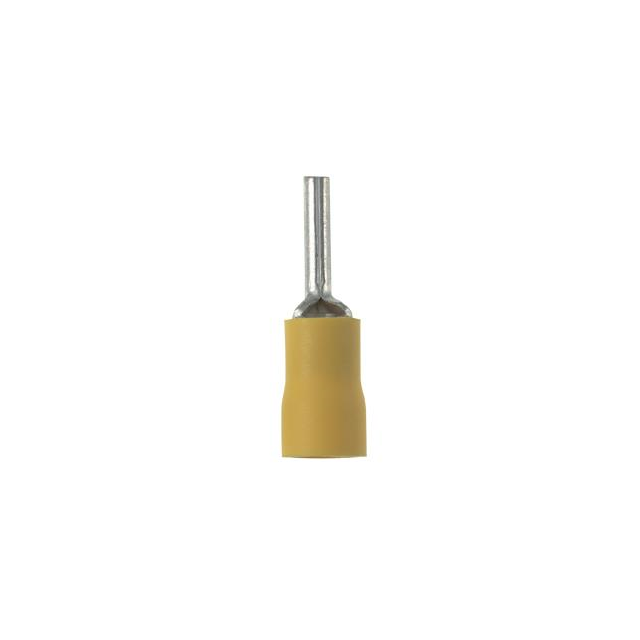

Panduit Corp Pan-Term® PV10-P55-EYY is a yellow, insulated wire pin terminal connector designed for 10-12 AWG wire. This component features a brazed seam for enhanced durability and a crimp termination method. The insulated housing accommodates a maximum insulation diameter of 0.250 inches (6.35mm). With an overall length of 1.100 inches (27.94mm) and a pin length of 0.550 inches (13.97mm), the pin diameter is circular at 0.100 inches (2.54mm). This terminal is supplied in bulk packaging and is commonly utilized in industrial automation, telecommunications, and automotive manufacturing sectors where reliable wire termination is critical.
Additional Information
Series: Pan-Term®RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Features | Brazed Seam |
| Packaging | Bulk |
| Color | Yellow |
| Wire Gauge | 10-12 AWG |
| Insulation | Insulated |
| Pin Diameter | Circular - 0.100"" (2.54mm) Dia |
| Length - Overall | 1.100"" (27.94mm) |
| Termination | Crimp |
| Length - Pin | 0.550"" (13.97mm) |
| Insulation Diameter | 0.250"" (6.35mm) |
