EV18-P47B-Q
STRONGHOLD PIN TERMINAL, VINYL IManufacturer: Panduit Corp
Categories: Wire Pin Connectors
Quality Control: Learn More

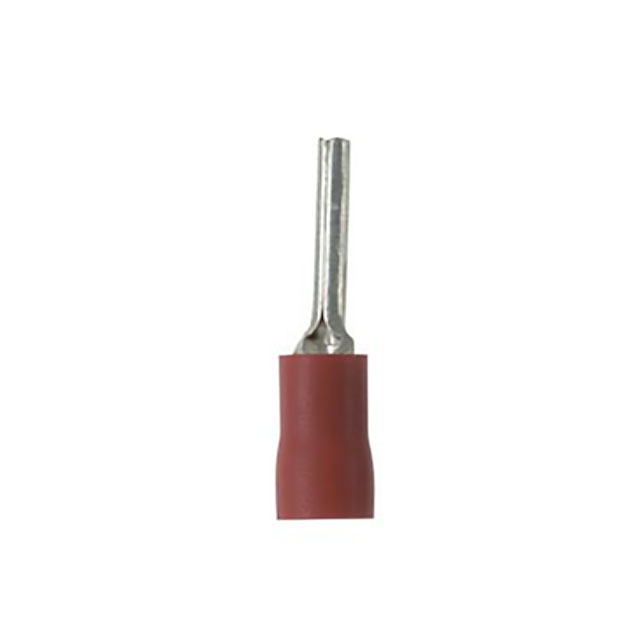

Panduit Corp StrongHold™ EV18-P47B-Q is a red, vinyl-insulated wire pin terminal connector designed for 18-22 AWG wire. This crimp-style terminal features a brazed seam construction for enhanced durability and a secure connection. The overall length is 0.970 inches (24.64mm), with a pin length of 0.490 inches (12.45mm) and a pin diameter of 0.070 inches (1.78mm). The insulation diameter measures 0.150 inches (3.81mm). This component is commonly utilized in industrial automation, automotive, and general electrical wiring applications. It is supplied in bulk packaging.
Additional Information
Series: StrongHold™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Brazed Seam |
| Packaging | Bulk |
| Color | Red |
| Wire Gauge | 18-22 AWG |
| Insulation | Insulated |
| Pin Diameter | Circular - 0.070"" (1.78mm) Dia |
| Length - Overall | 0.970"" (24.64mm) |
| Termination | Crimp |
| Length - Pin | 0.490"" (12.45mm) |
| Insulation Diameter | 0.150"" (3.81mm) |
Request a Quote
Clients Also Buy

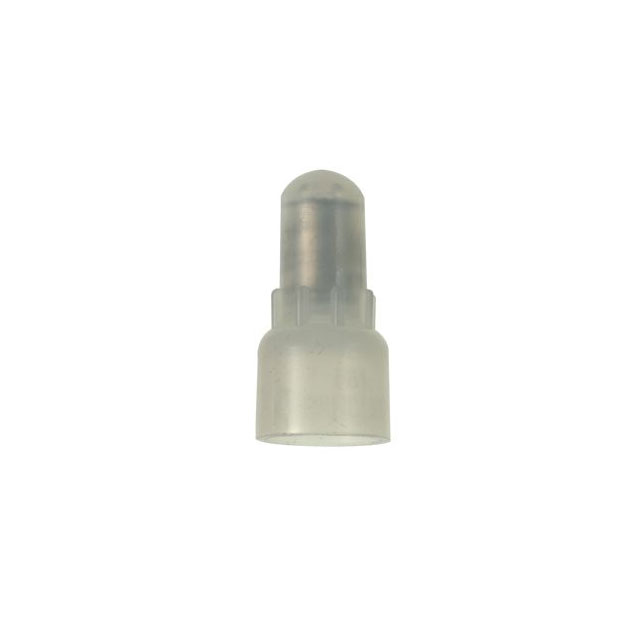

EJN218-216-L
