EV10-P55-Q
STRONGHOLD PIN TERMINAL, VINYL IManufacturer: Panduit Corp
Categories: Wire Pin Connectors
Quality Control: Learn More

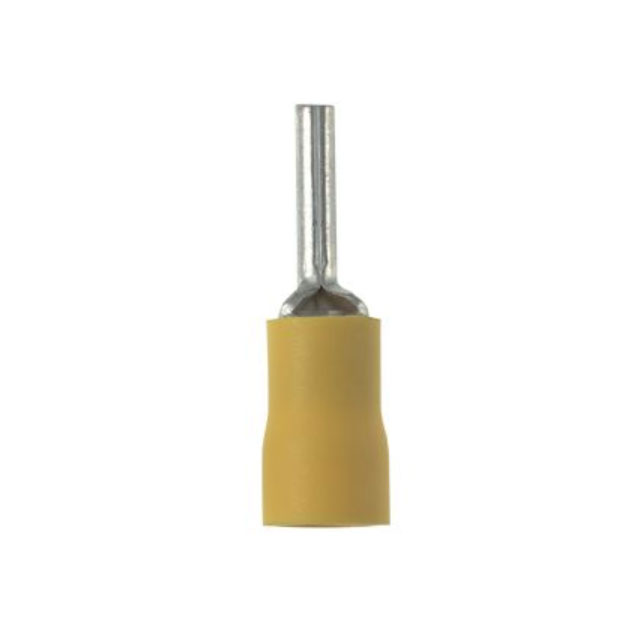

Panduit Corp StrongHold™ EV10-P55-Q is a yellow, insulated wire pin terminal connector designed for 10-12 AWG wire. This component features a brazed seam for enhanced durability and a vinyl insulation with a maximum insulation diameter of 0.250" (6.35mm). The overall length is 1.100" (27.94mm), with a pin length of 0.550" (13.97mm) and a circular pin diameter of 0.100" (2.54mm). Termination is achieved via crimping. This terminal is suitable for various industrial applications, including automotive and general industrial equipment. The product is supplied in bulk packaging.
Additional Information
Series: StrongHold™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Brazed Seam |
| Packaging | Bulk |
| Color | Yellow |
| Wire Gauge | 10-12 AWG |
| Insulation | Insulated |
| Pin Diameter | Circular - 0.100"" (2.54mm) Dia |
| Length - Overall | 1.100"" (27.94mm) |
| Termination | Crimp |
| Length - Pin | 0.550"" (13.97mm) |
| Insulation Diameter | 0.250"" (6.35mm) |
Request a Quote
