PV22-6F-CYY
CONN SPADE TERM 22-26AWG #6 YELManufacturer: Panduit Corp
Categories: Spade Connectors
Quality Control: Learn More

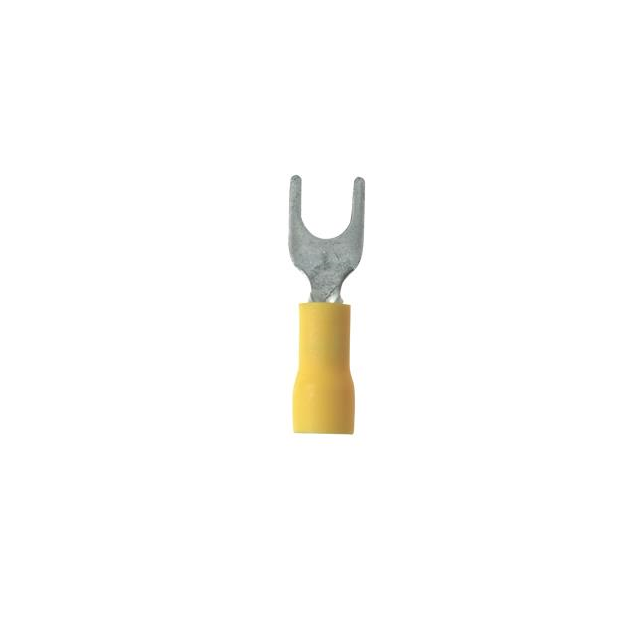

Panduit Corp Pan-Term® PV22-6F-CYY is a yellow, insulated spade terminal connector designed for crimp termination. This component is engineered for wire gauges ranging from 22 to 26 AWG. It features a 6 stud size for secure mounting and a brazed seam for enhanced durability. The terminal is constructed from copper with a tin contact finish, ensuring reliable conductivity. The overall length is 0.760 inches (19.30mm) with an outer edge width of 0.250 inches (6.35mm). This electrical component is suitable for applications in the industrial automation and telecommunications sectors. It is supplied in bulk packaging.
Additional Information
Series: Pan-Term®RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Brazed Seam |
| Packaging | Bulk |
| Contact Finish | Tin |
| Color | Yellow |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 22-26 AWG |
| Insulation | Insulated |
| Terminal Type | Standard |
| Stud/Tab Size | 6 Stud |
| Length - Overall | 0.760"" (19.30mm) |
| Termination | Crimp |
| Width - Outer Edges | 0.250"" (6.35mm) |
| Contact Material | Copper |
