PV22-6F-CY
CONN SPADE TERM 22-26AWG #6 YELManufacturer: Panduit Corp
Categories: Spade Connectors
Quality Control: Learn More

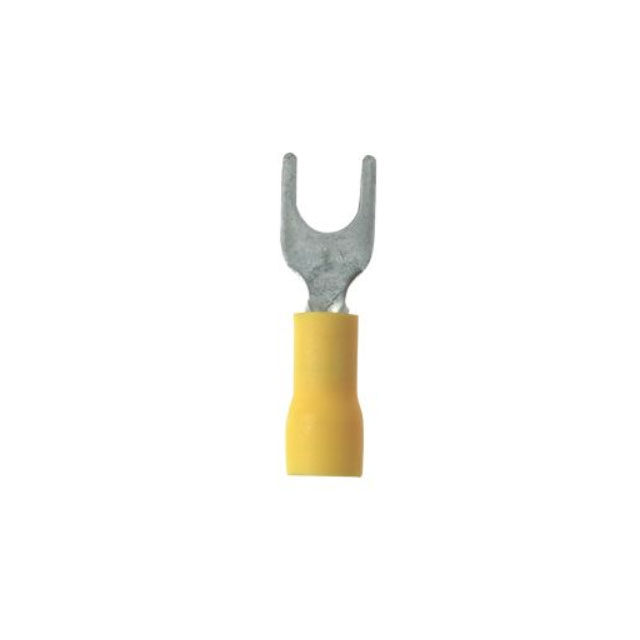

Panduit Corp Pan-Term® PV22-6F-CY is a yellow, insulated spade terminal connector designed for crimp termination. This component accommodates wire gauges from 22 to 26 AWG and features a 6 stud size for secure connection. Constructed with a copper contact material and tin contact finish, it offers a brazed seam for enhanced durability. The overall length is 0.760 inches (19.30mm) with an outer width of 0.250 inches (6.35mm). This terminal is suitable for free hanging (in-line) mounting applications. It is commonly utilized in industrial automation, telecommunications, and power distribution systems requiring reliable electrical connections. The product is supplied in bulk packaging.
Additional Information
Series: Pan-Term®RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Brazed Seam |
| Packaging | Bulk |
| Contact Finish | Tin |
| Color | Yellow |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 22-26 AWG |
| Insulation | Insulated |
| Terminal Type | Standard |
| Stud/Tab Size | 6 Stud |
| Length - Overall | 0.760"" (19.30mm) |
| Termination | Crimp |
| Width - Outer Edges | 0.250"" (6.35mm) |
| Contact Material | Copper |
