PV22-4F-CY
CONN SPADE TERM 22-26AWG #4 YELManufacturer: Panduit Corp
Categories: Spade Connectors
Quality Control: Learn More

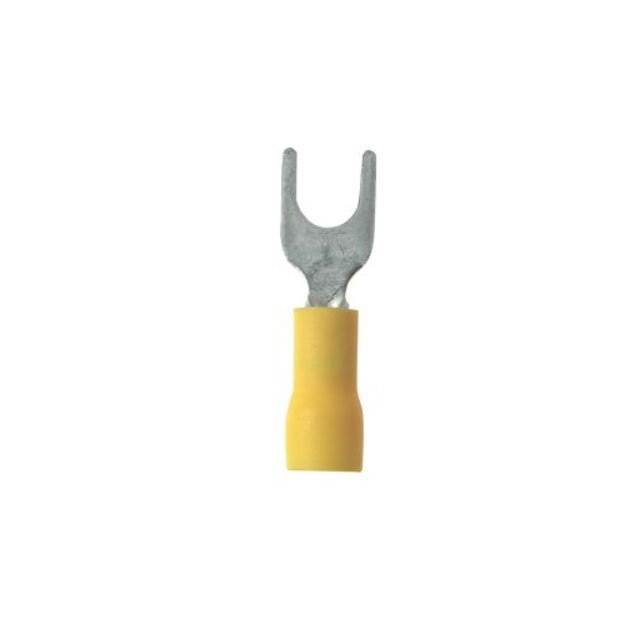

The Panduit Corp Pan-Term® PV22-4F-CY is a yellow, insulated spade terminal connector designed for wire gauges from 22 to 26 AWG. This component features a standard terminal type with a crimp termination method. The overall length measures 0.670 inches (17.02mm), and it accommodates a #4 stud size. Constructed from copper with a tin contact finish, the PV22-4F-CY incorporates a brazed seam for enhanced durability. Its free hanging, in-line mounting type makes it suitable for a variety of applications. This terminal is commonly utilized in industrial automation, automotive, and general electronics manufacturing. The PV22-4F-CY is provided in bulk packaging.
Additional Information
Series: Pan-Term®RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Brazed Seam |
| Packaging | Bulk |
| Contact Finish | Tin |
| Color | Yellow |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 22-26 AWG |
| Insulation | Insulated |
| Terminal Type | Standard |
| Stud/Tab Size | 4 Stud |
| Length - Overall | 0.670"" (17.02mm) |
| Termination | Crimp |
| Width - Outer Edges | 0.200"" (5.08mm) |
| Contact Material | Copper |
