PV18-8LFX-CY
CONN SPADE TERM 18-22AWG #8 REDManufacturer: Panduit Corp
Categories: Spade Connectors
Quality Control: Learn More

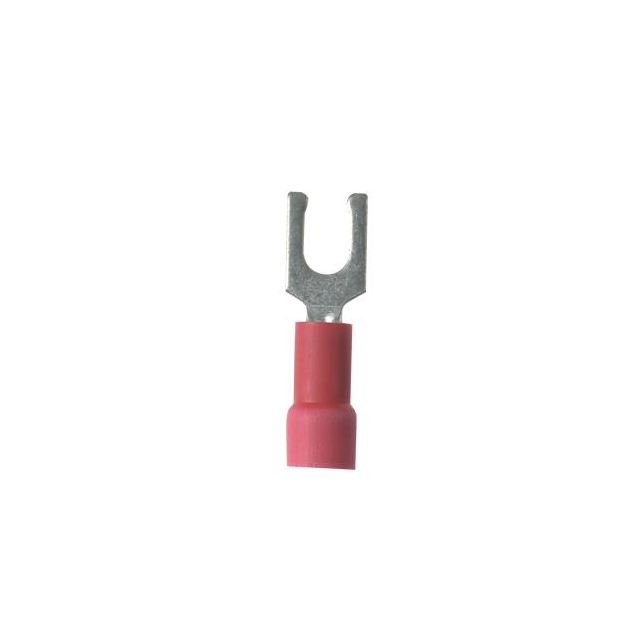

Panduit Corp Pan-Term® PV18-8LFX-CY is a red, insulated spade terminal connector designed for crimp termination of 18-22 AWG wire. This component features a brazed seam for enhanced durability and serrated termination for maximum wire retention. The stud size is #8, and the overall length is 1.010 inches (25.65mm) with an outer width of 0.290 inches (7.37mm). Constructed from copper with a tin contact finish, this terminal is suitable for applications in industrial automation, telecommunications, and power distribution systems. The mounting type is free hanging (in-line), offering flexibility in wiring configurations. Supplied in bulk packaging.
Additional Information
Series: Pan-Term®RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Brazed Seam, Serrated Termination |
| Packaging | Bulk |
| Contact Finish | Tin |
| Color | Red |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 18-22 AWG |
| Insulation | Insulated |
| Terminal Type | Spring, Snap |
| Stud/Tab Size | 8 Stud |
| Length - Overall | 1.010"" (25.65mm) |
| Termination | Crimp |
| Width - Outer Edges | 0.290"" (7.37mm) |
| Contact Material | Copper |
