PV18-8FX-CY
CONN SPADE TERM 18-22AWG #8 REDManufacturer: Panduit Corp
Categories: Spade Connectors
Quality Control: Learn More

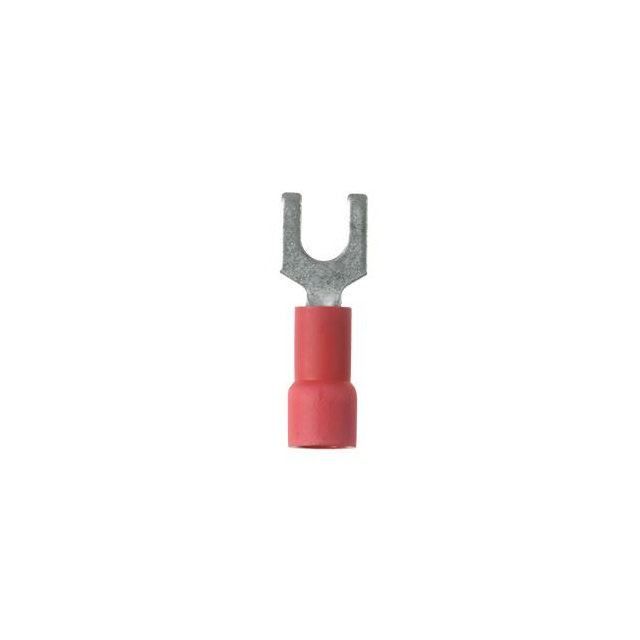

The Panduit Corp PV18-8FX-CY is a red, insulated Pan-Term® series spade terminal designed for reliable electrical connections. This crimp-style connector accommodates wire gauges from 18 to 22 AWG and features a tin-plated copper contact material with a brazed seam for enhanced durability. The terminal is engineered to fit an 8 stud size, with an overall length of 0.890 inches (22.61mm) and an outer width of 0.320 inches (8.13mm). Its free-hanging, in-line mounting type makes it suitable for various applications across industrial automation, telecommunications, and power distribution systems. This component is supplied in bulk packaging.
Additional Information
Series: Pan-Term®RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Brazed Seam |
| Packaging | Bulk |
| Contact Finish | Tin |
| Color | Red |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 18-22 AWG |
| Insulation | Insulated |
| Terminal Type | Standard |
| Stud/Tab Size | 8 Stud |
| Length - Overall | 0.890"" (22.61mm) |
| Termination | Crimp |
| Width - Outer Edges | 0.320"" (8.13mm) |
| Contact Material | Copper |
