PV18-6LFX-MY
CONN SPADE TERM 18-22AWG #6 REDManufacturer: Panduit Corp
Categories: Spade Connectors
Quality Control: Learn More

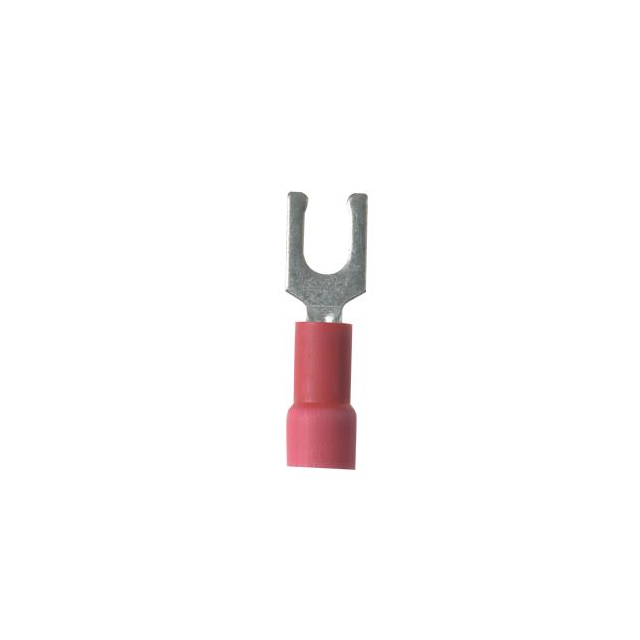

Panduit Corp Pan-Term® PV18-6LFX-MY is a red, insulated spade terminal connector designed for crimp termination of 18-22 AWG wire. This component features a 6 stud size and a free hanging (in-line) mounting type. The contact material is copper with a tin finish, and it incorporates a brazed seam for enhanced durability and serrated termination for improved wire grip. The overall length is 0.950 inches (24.13mm) with an outer width of 0.270 inches (6.86mm). This terminal is commonly utilized in industrial automation, power distribution, and telecommunications equipment. It is supplied in bulk packaging.
Additional Information
Series: Pan-Term®RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Brazed Seam, Serrated Termination |
| Packaging | Bulk |
| Contact Finish | Tin |
| Color | Red |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 18-22 AWG |
| Insulation | Insulated |
| Terminal Type | Spring, Snap |
| Stud/Tab Size | 6 Stud |
| Length - Overall | 0.950"" (24.13mm) |
| Termination | Crimp |
| Width - Outer Edges | 0.270"" (6.86mm) |
| Contact Material | Copper |
