PV18-6LFX-CY
CONN SPADE TERM 18-22AWG #6 REDManufacturer: Panduit Corp
Categories: Spade Connectors
Quality Control: Learn More

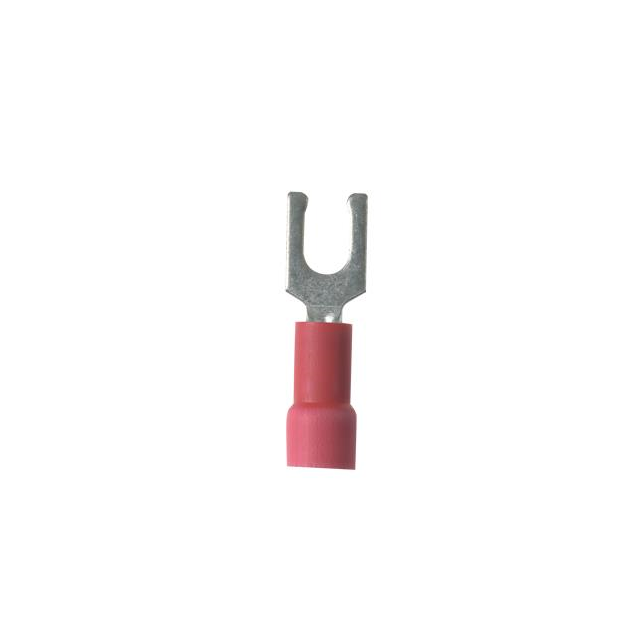

Panduit Corp Pan-Term® PV18-6LFX-CY is a red, insulated spade terminal featuring a crimp termination suitable for 18-22 AWG wire. This component offers a #6 stud size for secure mounting and is constructed with a copper contact material and tin plating for reliable conductivity. Key features include a brazed seam for enhanced durability and serrated termination for improved wire grip. The overall length is 0.950 inches (24.13mm) with an outer width of 0.270 inches (6.86mm). Designed for free-hanging (in-line) applications, this terminal finds utility in industries such as industrial automation, automotive, and telecommunications where robust and reliable wire termination is critical. The PV18-6LFX-CY is supplied in bulk packaging.
Additional Information
Series: Pan-Term®RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Features | Brazed Seam, Serrated Termination |
| Packaging | Bulk |
| Contact Finish | Tin |
| Color | Red |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 18-22 AWG |
| Insulation | Insulated |
| Terminal Type | Spring, Snap |
| Stud/Tab Size | 6 Stud |
| Length - Overall | 0.950"" (24.13mm) |
| Termination | Crimp |
| Width - Outer Edges | 0.270"" (6.86mm) |
| Contact Material | Copper |
