PV18-6LFW-CY
CONN SPADE TERM 18-22AWG #6 REDManufacturer: Panduit Corp
Categories: Spade Connectors
Quality Control: Learn More

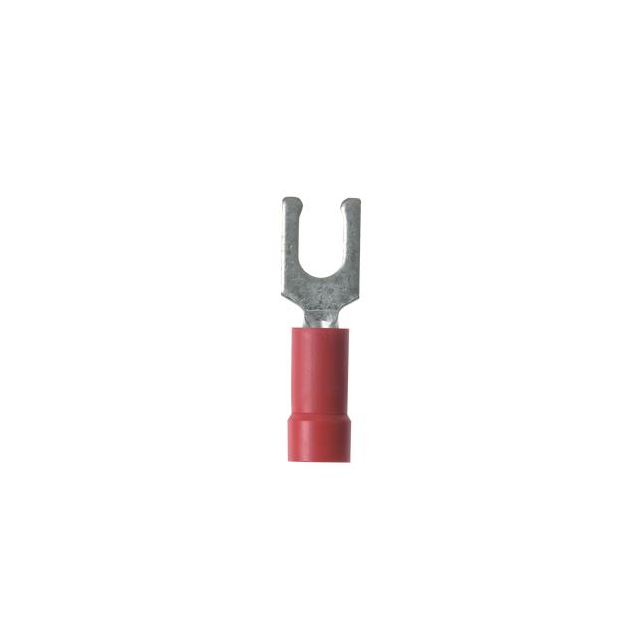

Panduit Corp Pan-Term® PV18-6LFW-CY is a red, insulated spade terminal connector designed for crimp termination. This component accommodates wire gauges from 18 to 22 AWG and features a 6 AWG stud size. The connector is constructed with a copper contact material and a tin contact finish. Key design elements include a brazed seam for enhanced durability and serrated termination for improved wire grip. The overall length is 0.900 inches (22.86mm) with an outer edge width of 0.290 inches (7.37mm). This free-hanging, in-line terminal is suitable for applications in industrial automation, automotive, and general electronics manufacturing. It is supplied in bulk packaging.
Additional Information
Series: Pan-Term®RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Brazed Seam, Serrated Termination |
| Packaging | Bulk |
| Contact Finish | Tin |
| Color | Red |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 18-22 AWG |
| Insulation | Insulated |
| Terminal Type | Spring, Snap |
| Stud/Tab Size | 6 Stud |
| Length - Overall | 0.900"" (22.86mm) |
| Termination | Crimp |
| Width - Outer Edges | 0.290"" (7.37mm) |
| Contact Material | Copper |
