PV18-6FX-CY
CONN SPADE TERM 18-22AWG #6 REDManufacturer: Panduit Corp
Categories: Spade Connectors
Quality Control: Learn More

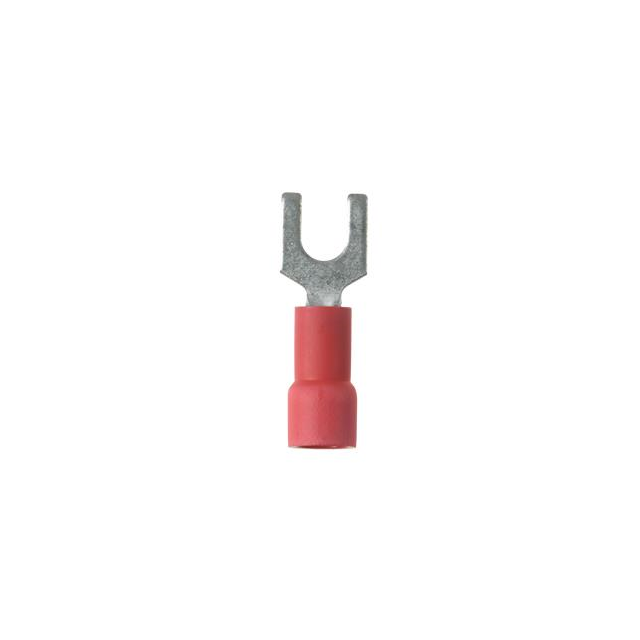

Panduit Corp Pan-Term® PV18-6FX-CY is a red, insulated spade terminal connector designed for crimp termination of 18-22 AWG wire. Featuring a 6 stud size, this component is constructed from copper with a tin contact finish for reliable conductivity. The terminal exhibits a brazed seam and a serrated termination for enhanced wire retention. Its overall length is 0.880 inches (22.35mm) with an outer edge width of 0.300 inches (7.62mm). This free hanging (in-line) mounting type connector is packaged in bulk and is suitable for applications across various industrial sectors.
Additional Information
Series: Pan-Term®RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Features | Brazed Seam, Serrated Termination |
| Packaging | Bulk |
| Contact Finish | Tin |
| Color | Red |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 18-22 AWG |
| Insulation | Insulated |
| Terminal Type | Standard |
| Stud/Tab Size | 6 Stud |
| Length - Overall | 0.880"" (22.35mm) |
| Termination | Crimp |
| Width - Outer Edges | 0.300"" (7.62mm) |
| Contact Material | Copper |
