PV18-6FF-MY
CONN SPADE TERM 18-22AWG #6 REDManufacturer: Panduit Corp
Categories: Spade Connectors
Quality Control: Learn More

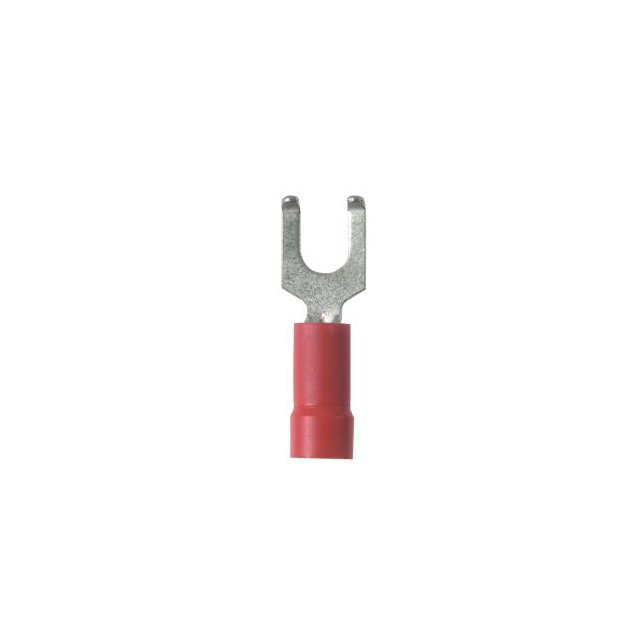

Panduit Corp Pan-Term® PV18-6FF-MY is a red, insulated spade terminal connector designed for crimp termination of 18-22 AWG wire. This component features a flanged terminal type with a 6 stud size, accommodating a #6 stud. The overall length is 0.870 inches (22.10mm), with a width of 0.280 inches (7.11mm). Constructed with a copper contact material and tin contact finish, it incorporates a brazed seam for enhanced durability. The free hanging (in-line) mounting type makes it suitable for various electrical connections. This terminal is commonly utilized in automotive, industrial automation, and telecommunications applications. Supplied in bulk packaging.
Additional Information
Series: Pan-Term®RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Brazed Seam |
| Packaging | Bulk |
| Contact Finish | Tin |
| Color | Red |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 18-22 AWG |
| Insulation | Insulated |
| Terminal Type | Flanged |
| Stud/Tab Size | 6 Stud |
| Length - Overall | 0.870"" (22.10mm) |
| Termination | Crimp |
| Width - Outer Edges | 0.280"" (7.11mm) |
| Contact Material | Copper |
