PV18-6FF-CY
CONN SPADE TERM 18-22AWG #6 REDManufacturer: Panduit Corp
Categories: Spade Connectors
Quality Control: Learn More

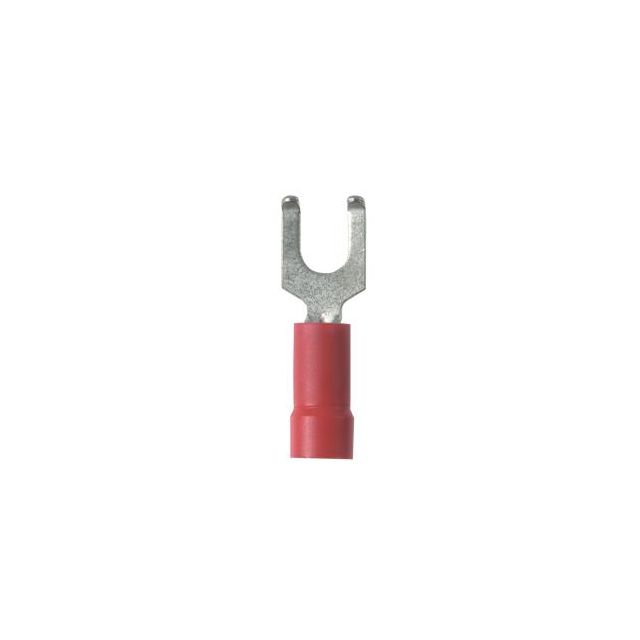

Panduit Corp Pan-Term® PV18-6FF-CY is a red, insulated spade terminal designed for a wire gauge of 18-22 AWG. This flanged spade terminal features a robust copper contact with a tin finish for reliable conductivity. Engineered with a brazed seam for enhanced durability, it offers a secure crimp termination. The overall length of the connector is 0.870 inches (22.10mm), with a width of 0.280 inches (7.11mm) at its outer edges. It is suitable for free hanging (in-line) mounting applications and accommodates a #6 stud size. This component is commonly utilized in industrial automation, telecommunications, and automotive sectors for secure electrical connections. The PV18-6FF-CY is supplied in bulk packaging.
Additional Information
Series: Pan-Term®RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Brazed Seam |
| Packaging | Bulk |
| Contact Finish | Tin |
| Color | Red |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 18-22 AWG |
| Insulation | Insulated |
| Terminal Type | Flanged |
| Stud/Tab Size | 6 Stud |
| Length - Overall | 0.870"" (22.10mm) |
| Termination | Crimp |
| Width - Outer Edges | 0.280"" (7.11mm) |
| Contact Material | Copper |
