PV18-6F-E
CONN SPADE TERM 18-22AWG #6 REDManufacturer: Panduit Corp
Categories: Spade Connectors
Quality Control: Learn More

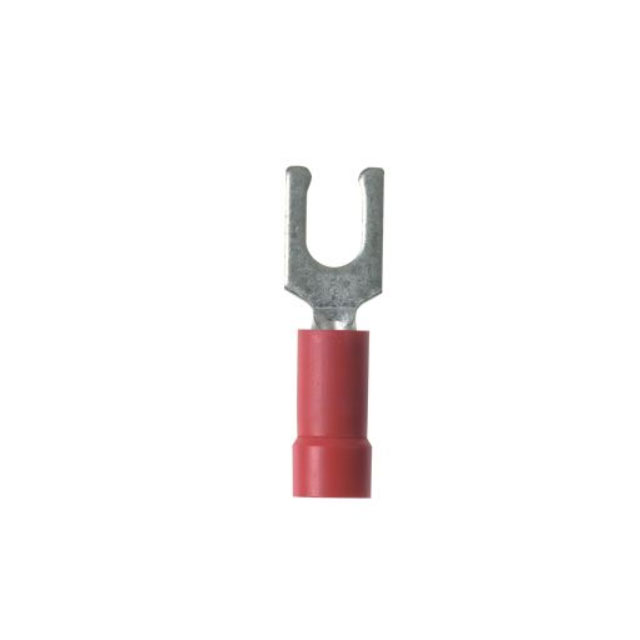

Panduit Corp Pan-Term® PV18-6F-E is a red, insulated spade terminal connector designed for crimp termination. This component is suitable for 18-22 AWG wire and features a 6 stud size. The terminal boasts a copper contact material with a tin finish for optimal conductivity and corrosion resistance. Key construction attributes include a brazed seam for enhanced durability and serrated termination for superior wire retention. With an overall length of 0.860 inches (21.84mm) and an outer width of 0.300 inches (7.62mm), it is designed for free hanging (in-line) mounting. This terminal is commonly utilized in industrial automation, power distribution, and telecommunications applications. It is supplied in bulk packaging.
Additional Information
Series: Pan-Term®RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Brazed Seam, Serrated Termination |
| Packaging | Bulk |
| Contact Finish | Tin |
| Color | Red |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 18-22 AWG |
| Insulation | Insulated |
| Terminal Type | Standard |
| Stud/Tab Size | 6 Stud |
| Length - Overall | 0.860"" (21.84mm) |
| Termination | Crimp |
| Width - Outer Edges | 0.300"" (7.62mm) |
| Contact Material | Copper |
Request a Quote
