PV18-10LFX-CY
CONN SPADE TERM 18-22AWG #10 REDManufacturer: Panduit Corp
Categories: Spade Connectors
Quality Control: Learn More

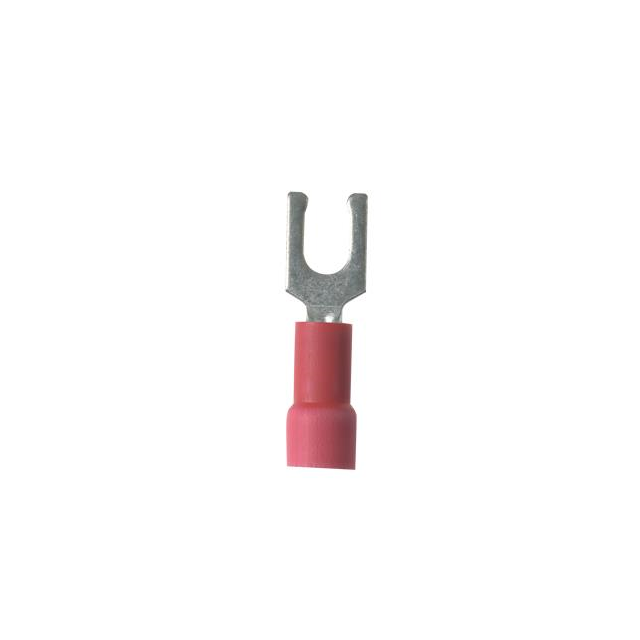

Panduit Corp Pan-Term® PV18-10LFX-CY is a red, insulated spade terminal connector designed for crimp termination. This component accepts wire gauges from 18 to 22 AWG and features a #10 stud size. Constructed from copper with a tin contact finish, it offers a brazed seam for enhanced durability and a serrated termination for superior wire retention. The overall length is 1.040 inches (26.42mm) with an outer width of 0.330 inches (8.38mm). Mounting is free hanging, suitable for in-line applications. This terminal is utilized in industries requiring reliable electrical connections, including industrial automation, telecommunications, and power distribution. Packaging is in bulk.
Additional Information
Series: Pan-Term®RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Brazed Seam, Serrated Termination |
| Packaging | Bulk |
| Contact Finish | Tin |
| Color | Red |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 18-22 AWG |
| Insulation | Insulated |
| Terminal Type | Spring, Snap |
| Stud/Tab Size | 10 Stud |
| Length - Overall | 1.040"" (26.42mm) |
| Termination | Crimp |
| Width - Outer Edges | 0.330"" (8.38mm) |
| Contact Material | Copper |
