PV18-10LFNB-3K
CONN SPADE TERM 18-22AWG #10 REDManufacturer: Panduit Corp
Categories: Spade Connectors
Quality Control: Learn More

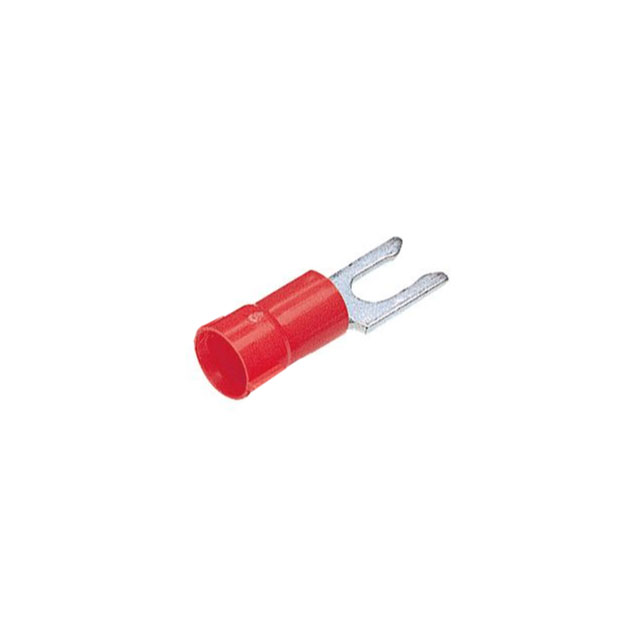

Panduit Corp Pan-Term® PV18-10LFNB-3K is a red, insulated spade terminal connector designed for crimp termination of 18-22 AWG wire. This component features a tin-plated copper contact with a butted seam construction for enhanced reliability. The terminal is configured for a #10 stud size and offers a free-hanging, in-line mounting type. Its overall length is 0.187 inches (4.75mm) with an outer width of 0.290 inches (7.37mm). This product is supplied on tape and reel (TR) for efficient automated assembly. It is commonly employed in automotive, industrial automation, and telecommunications applications where robust wire termination is critical.
Additional Information
Series: Pan-Term®RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | Butted Seam |
| Packaging | Tape & Reel (TR) |
| Contact Finish | Tin |
| Color | Red |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 18-22 AWG |
| Insulation | Insulated |
| Terminal Type | Spring, Snap |
| Stud/Tab Size | 10 Stud |
| Length - Overall | 0.187"" (4.75mm) |
| Termination | Crimp |
| Width - Outer Edges | 0.290"" (7.37mm) |
| Contact Material | Copper |
