PV18-10FN-CY
CONN SPADE TERM 18-22AWG #10 REDManufacturer: Panduit Corp
Categories: Spade Connectors
Quality Control: Learn More

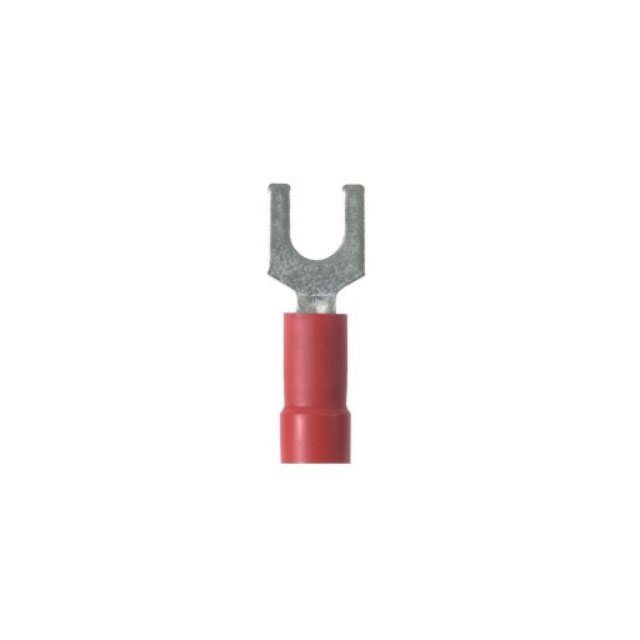

Panduit Corp Pan-Term® PV18-10FN-CY is a red, insulated spade terminal connector designed for crimp termination of 18-22 AWG wire. This component features a #10 stud size and is constructed from copper with a tin contact finish. The brazed seam construction ensures a robust and reliable connection. Its free-hanging, in-line mounting type makes it suitable for a variety of applications. The overall length is 0.930 inches (23.62mm) with an outer width of 0.310 inches (7.87mm). This component is commonly utilized in the automotive and industrial automation sectors. It is supplied in bulk packaging.
Additional Information
Series: Pan-Term®RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Brazed Seam |
| Packaging | Bulk |
| Contact Finish | Tin |
| Color | Red |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 18-22 AWG |
| Insulation | Insulated |
| Terminal Type | Standard |
| Stud/Tab Size | 10 Stud |
| Length - Overall | 0.930"" (23.62mm) |
| Termination | Crimp |
| Width - Outer Edges | 0.310"" (7.87mm) |
| Contact Material | Copper |
