PV18-10FF-CY
CONN SPADE TERM 18-22AWG #10 REDManufacturer: Panduit Corp
Categories: Spade Connectors
Quality Control: Learn More

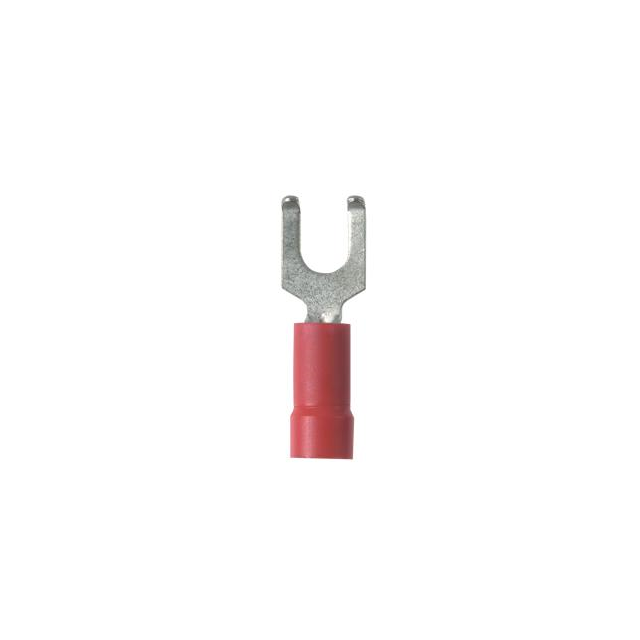

Panduit Corp Pan-Term® PV18-10FF-CY is a red, insulated spade terminal connector designed for wire gauges 18-22 AWG. This component features a brazed seam for enhanced durability and a tin-plated copper contact material for reliable conductivity. The terminal type is flanged with a 10 stud size, facilitating secure connection in free-hanging (in-line) applications. With an overall length of 0.930 inches (23.62mm) and an outer edge width of 0.350 inches (8.89mm), it offers robust termination via crimping. This component is commonly utilized in industrial automation, power distribution, and control systems where dependable electrical connections are critical. Supplied in bulk packaging.
Additional Information
Series: Pan-Term®RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Brazed Seam |
| Packaging | Bulk |
| Contact Finish | Tin |
| Color | Red |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 18-22 AWG |
| Insulation | Insulated |
| Terminal Type | Flanged |
| Stud/Tab Size | 10 Stud |
| Length - Overall | 0.930"" (23.62mm) |
| Termination | Crimp |
| Width - Outer Edges | 0.350"" (8.89mm) |
| Contact Material | Copper |
