PV18-10F-E
CONN SPADE TERM 18-22AWG #10 REDManufacturer: Panduit Corp
Categories: Spade Connectors
Quality Control: Learn More

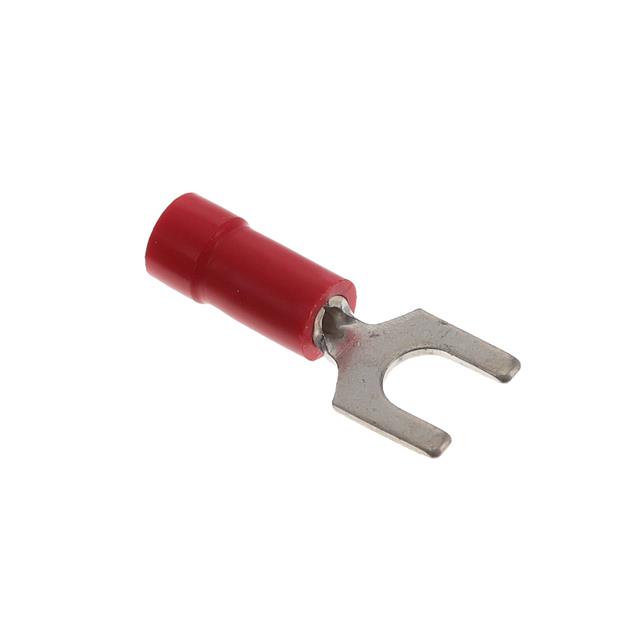

Panduit Corp PV18-10F-E is a red, insulated spade terminal from the Pan-Term® series. This connector is designed for crimp termination of 18-22 AWG wire. It features a 10 stud size and is constructed with copper contact material and tin plating for reliable conductivity. Key design elements include a brazed seam for enhanced durability and serrated termination to ensure a secure wire grip. The terminal has an overall length of 0.930 inches (23.62mm) and an outer width of 0.350 inches (8.89mm). This component is utilized in industrial automation, automotive, and telecommunications applications requiring robust wire termination solutions. It is supplied in bulk packaging.
Additional Information
Series: Pan-Term®RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Brazed Seam, Serrated Termination |
| Packaging | Bulk |
| Contact Finish | Tin |
| Color | Red |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 18-22 AWG |
| Insulation | Insulated |
| Terminal Type | Standard |
| Stud/Tab Size | 10 Stud |
| Length - Overall | 0.930"" (23.62mm) |
| Termination | Crimp |
| Width - Outer Edges | 0.350"" (8.89mm) |
| Contact Material | Copper |
