PV14-8LFX-M
CONN SPADE TERM 14-16AWG #8 BLUManufacturer: Panduit Corp
Categories: Spade Connectors
Quality Control: Learn More

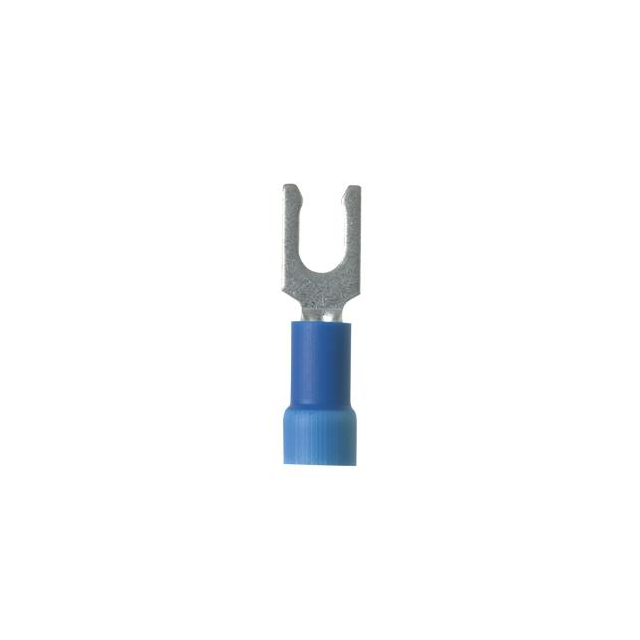

Panduit Corp Pan-Term® PV14-8LFX-M is a blue, insulated spade terminal connector designed for 14-16 AWG wire. This component features a tin-plated copper contact material and a brazed seam construction for enhanced durability. The serrated termination ensures a secure connection. With a stud size of #8 and a crimp termination type, it offers reliable performance in demanding applications. The overall length is 1.010 inches (25.65mm) and the outer width is 0.290 inches (7.37mm). This terminal is suitable for free-hanging (in-line) mounting and is commonly utilized in industrial automation, telecommunications, and transportation systems. Supplied in bulk packaging.
Additional Information
Series: Pan-Term®RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Brazed Seam, Serrated Termination |
| Packaging | Bulk |
| Contact Finish | Tin |
| Color | Blue |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 14-16 AWG |
| Insulation | Insulated |
| Terminal Type | Spring, Snap |
| Stud/Tab Size | 8 Stud |
| Length - Overall | 1.010"" (25.65mm) |
| Termination | Crimp |
| Width - Outer Edges | 0.290"" (7.37mm) |
| Contact Material | Copper |
