PV14-8LFX-C
CONN SPADE TERM 14-16AWG #8 BLUManufacturer: Panduit Corp
Categories: Spade Connectors
Quality Control: Learn More
Panduit Corp Pan-Term®, ReelSmart™ PV14-8LFX-C is a blue, insulated spade terminal connector designed for crimp termination of 14-16 AWG wire. This component features a brazed seam and serrated termination for enhanced electrical performance and secure wire connection. The copper contact material is plated with tin for corrosion resistance. With a stud size of #8 and a free-hanging (in-line) mounting type, this terminal is suitable for applications requiring reliable electrical connections in industries such as automotive, industrial automation, and telecommunications equipment. The overall length is 1.010 inches (25.65mm) and the outer width is 0.290 inches (7.37mm).
Additional Information
Series: Pan-Term®, ReelSmart™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Brazed Seam, Serrated Termination |
| Packaging | Bulk |
| Contact Finish | Tin |
| Color | Blue |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 14-16 AWG |
| Insulation | Insulated |
| Terminal Type | Spring, Snap |
| Stud/Tab Size | 8 Stud |
| Length - Overall | 1.010"" (25.65mm) |
| Termination | Crimp |
| Width - Outer Edges | 0.290"" (7.37mm) |
| Contact Material | Copper |
Request a Quote
Clients Also Buy
PNF14-6FN-3K
CONN SPADE TERM 14-16AWG #6 BLU

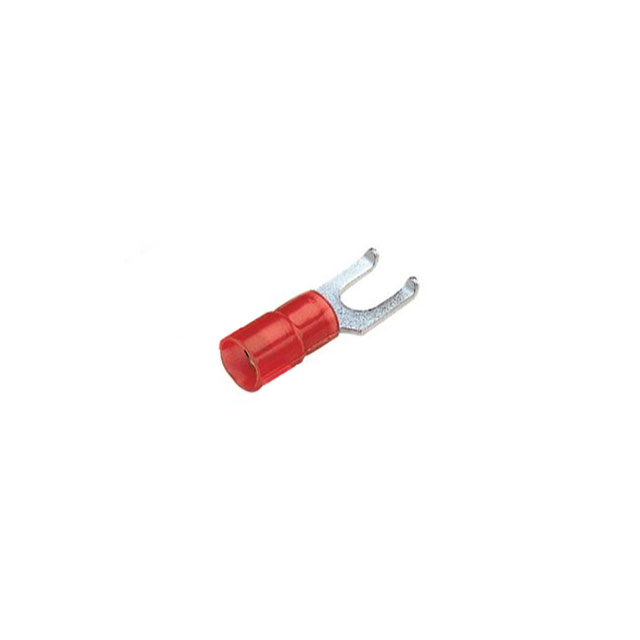

PV18-10FFB-3K
