PV14-8LF-E
CONN SPADE TERM 14-16AWG #8 BLUManufacturer: Panduit Corp
Categories: Spade Connectors
Quality Control: Learn More

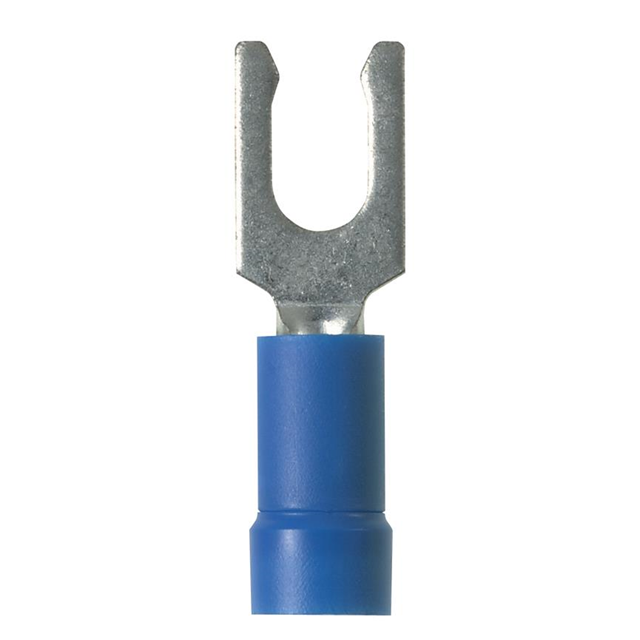

Panduit Corp Pan-Term® PV14-8LF-E is a blue, insulated spade terminal connector designed for 14-16 AWG wire. This crimp-style terminal features a tin-plated copper contact with a brazed seam and serrated termination for enhanced wire retention. The connector is engineered to accommodate an 8 stud size and offers a free-hanging (in-line) mounting type. Its overall length is 0.970 inches (24.64mm) with an outer edge width of 0.290 inches (7.37mm). This component is commonly utilized in industrial automation, telecommunications, and power distribution applications. It is supplied in bulk packaging.
Additional Information
Series: Pan-Term®RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Brazed Seam, Serrated Termination |
| Packaging | Bulk |
| Contact Finish | Tin |
| Color | Blue |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 14-16 AWG |
| Insulation | Insulated |
| Terminal Type | Spring, Snap |
| Stud/Tab Size | 8 Stud |
| Length - Overall | 0.970"" (24.64mm) |
| Termination | Crimp |
| Width - Outer Edges | 0.290"" (7.37mm) |
| Contact Material | Copper |
