PV14-8FX-M
CONN SPADE TERM 14-16AWG #8 BLUManufacturer: Panduit Corp
Categories: Spade Connectors
Quality Control: Learn More

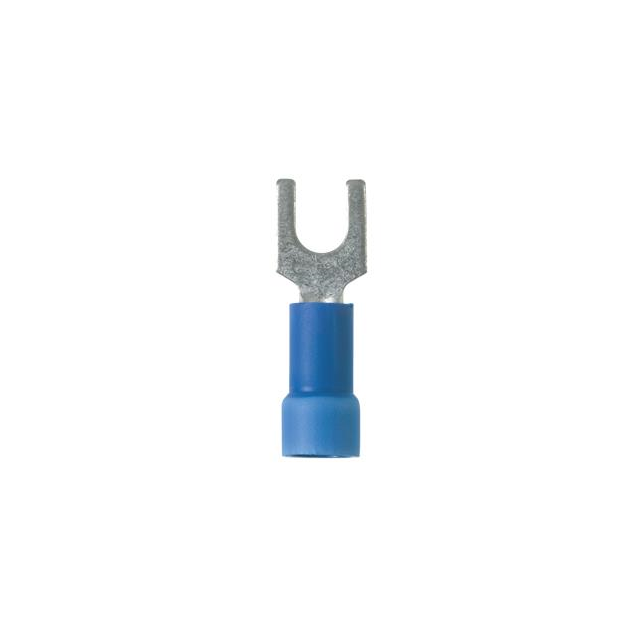

Panduit Corp Pan-Term® PV14-8FX-M is a blue, insulated spade terminal connector designed for crimp termination of 14-16 AWG wire. This component features a copper contact with a tin finish and is constructed with a brazed seam for enhanced durability. The serrated termination ensures a secure connection. It is engineered for an 8 stud size and offers a free-hanging (in-line) mounting type. The overall length is 0.960 inches (24.38mm) with an outer edge width of 0.310 inches (7.87mm). This terminal is suitable for applications in the industrial automation, telecommunications, and automotive sectors. It is supplied in bulk packaging.
Additional Information
Series: Pan-Term®RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Brazed Seam, Serrated Termination |
| Packaging | Bulk |
| Contact Finish | Tin |
| Color | Blue |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 14-16 AWG |
| Insulation | Insulated |
| Terminal Type | Standard |
| Stud/Tab Size | 8 Stud |
| Length - Overall | 0.960"" (24.38mm) |
| Termination | Crimp |
| Width - Outer Edges | 0.310"" (7.87mm) |
| Contact Material | Copper |
