PV14-8FX-C
CONN SPADE TERM 14-16AWG #8 BLUManufacturer: Panduit Corp
Categories: Spade Connectors
Quality Control: Learn More

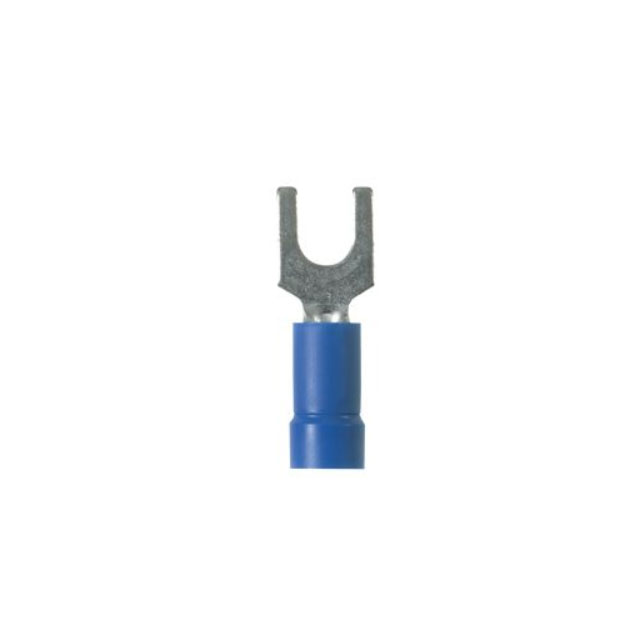

Panduit Corp Pan-Term® PV14-8FX-C is a blue, insulated spade terminal connector designed for 14-16 AWG wire. This component features tin-plated copper construction with a brazed seam for enhanced durability. The serrated termination ensures a secure connection. It is engineered for free-hanging, in-line mounting and accommodates an 8 stud size. This terminal is suitable for demanding applications across industries such as telecommunications, industrial automation, and automotive electronics. The overall length is 0.960 inches (24.38mm) with an outer edge width of 0.310 inches (7.87mm). It is supplied in bulk packaging.
Additional Information
Series: Pan-Term®RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Brazed Seam, Serrated Termination |
| Packaging | Bulk |
| Contact Finish | Tin |
| Color | Blue |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 14-16 AWG |
| Insulation | Insulated |
| Terminal Type | Standard |
| Stud/Tab Size | 8 Stud |
| Length - Overall | 0.960"" (24.38mm) |
| Termination | Crimp |
| Width - Outer Edges | 0.310"" (7.87mm) |
| Contact Material | Copper |
