PV14-8FF-C
CONN SPADE TERM 14-16AWG #8 BLUManufacturer: Panduit Corp
Categories: Spade Connectors
Quality Control: Learn More

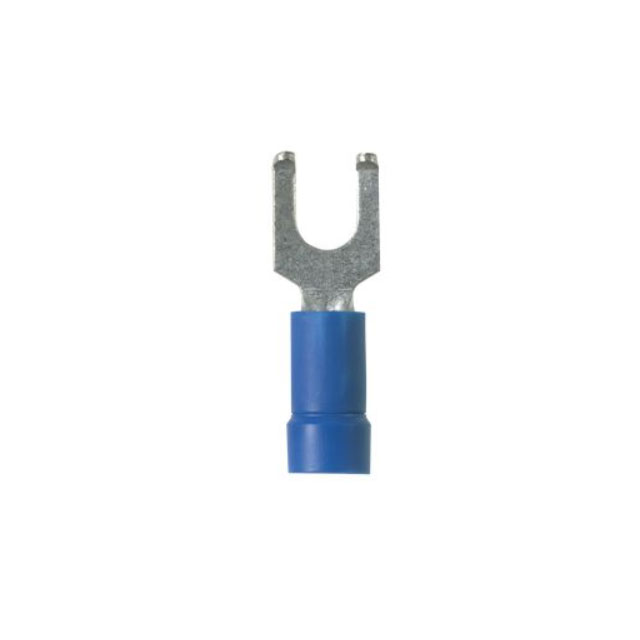

Panduit Corp Pan-Term® PV14-8FF-C is a blue, insulated spade terminal connector designed for 14-16 AWG wire. This component features a flanged terminal type with a free hanging (in-line) mounting configuration. The copper contact material is finished with tin, and a brazed seam enhances durability. The stud size accommodates an #8 stud. Suitable for applications requiring reliable crimp termination, this component is commonly utilized in industrial automation, telecommunications, and power distribution systems. Supplied in bulk packaging, the PV14-8FF-C offers a robust solution for wire management.
Additional Information
Series: Pan-Term®RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Brazed Seam |
| Packaging | Bulk |
| Contact Finish | Tin |
| Color | Blue |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 14-16 AWG |
| Insulation | Insulated |
| Terminal Type | Flanged |
| Stud/Tab Size | 8 Stud |
| Length - Overall | 0.940"" (23.88mm) |
| Termination | Crimp |
| Width - Outer Edges | 0.310"" (7.87mm) |
| Contact Material | Copper |
