PV14-6LFW-M
CONN SPADE TERM 14-16AWG #6 BLUManufacturer: Panduit Corp
Categories: Spade Connectors
Quality Control: Learn More

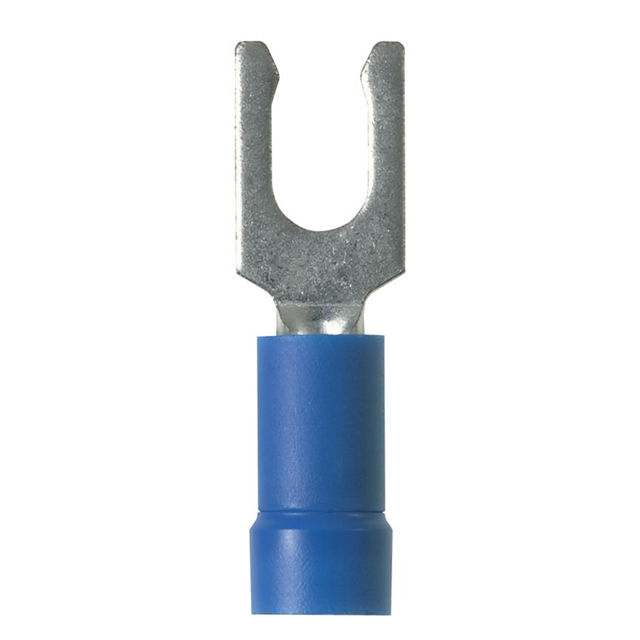

Panduit Corp Pan-Term® PV14-6LFW-M is a blue, insulated spade terminal connector designed for 14-16 AWG wire. This component features a tin-plated copper contact with a brazed seam for enhanced durability and a serrated termination for superior electrical contact. The 6 Stud size ensures secure mounting. Its construction facilitates reliable crimp termination in free-hanging (in-line) applications. The overall length is 0.900 inches (22.86mm) with an outer edge width of 0.290 inches (7.37mm). This terminal finds application in industries such as automotive, industrial automation, and telecommunications where robust and dependable connections are critical. It is supplied in bulk packaging.
Additional Information
Series: Pan-Term®RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Brazed Seam, Serrated Termination |
| Packaging | Bulk |
| Contact Finish | Tin |
| Color | Blue |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 14-16 AWG |
| Insulation | Insulated |
| Terminal Type | Spring, Snap |
| Stud/Tab Size | 6 Stud |
| Length - Overall | 0.900"" (22.86mm) |
| Termination | Crimp |
| Width - Outer Edges | 0.290"" (7.37mm) |
| Contact Material | Copper |
