PV14-6FX-C
CONN SPADE TERM 14-16AWG #6 BLUManufacturer: Panduit Corp
Categories: Spade Connectors
Quality Control: Learn More

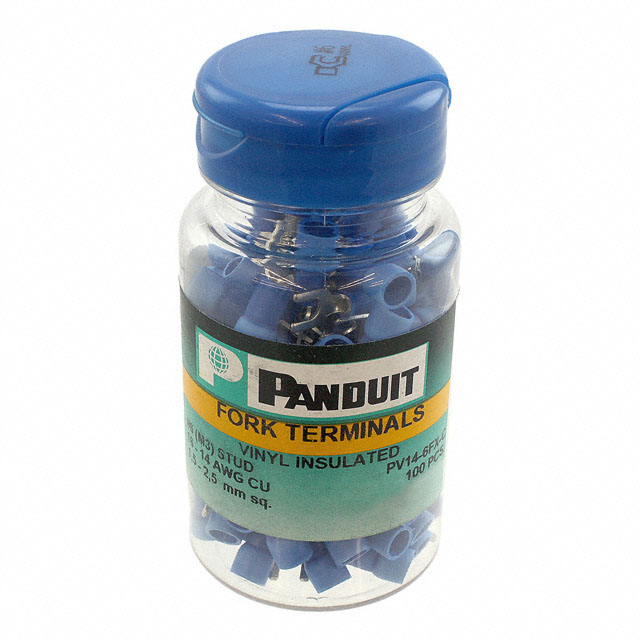

Panduit Corp Pan-Term® PV14-6FX-C is a blue, insulated spade terminal connector designed for reliable crimp termination of 14-16 AWG wire. This component features a 6 stud size and a tin-plated copper contact for excellent conductivity. The PV14-6FX-C utilizes a brazed seam construction for enhanced durability and incorporates serrated termination to ensure a secure connection. Its free-hanging, in-line mounting type makes it suitable for various electrical assembly applications. The overall length is 0.890 inches (22.61mm) with an outer edge width of 0.280 inches (7.11mm). This component is commonly found in industrial automation, telecommunications, and general electrical wiring applications. It is supplied in bulk packaging.
Additional Information
Series: Pan-Term®RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Brazed Seam, Serrated Termination |
| Packaging | Bulk |
| Contact Finish | Tin |
| Color | Blue |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 14-16 AWG |
| Insulation | Insulated |
| Terminal Type | Standard |
| Stud/Tab Size | 6 Stud |
| Length - Overall | 0.890"" (22.61mm) |
| Termination | Crimp |
| Width - Outer Edges | 0.280"" (7.11mm) |
| Contact Material | Copper |
