PV14-6F-E
CONN SPADE TERM 14-16AWG #6 BLUManufacturer: Panduit Corp
Categories: Spade Connectors
Quality Control: Learn More

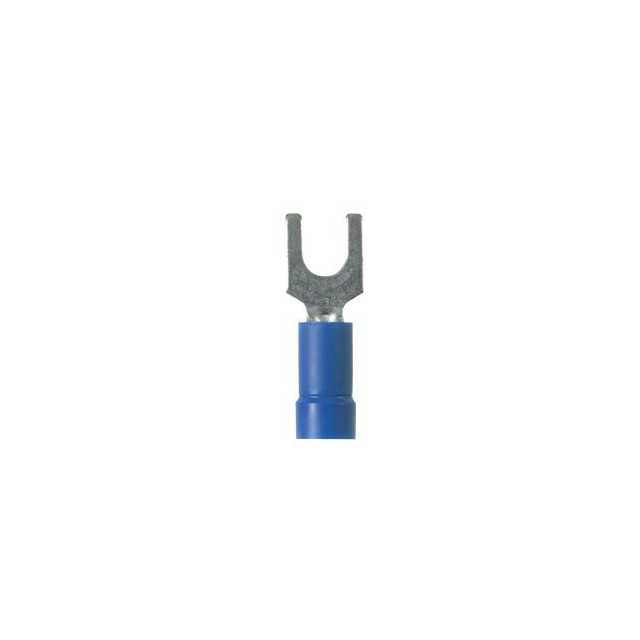

Panduit Corp Pan-Term® PV14-6F-E is a blue, insulated spade terminal connector designed for crimp termination of 14-16 AWG wire. This component features a standard terminal type with a 6 stud size and a tin contact finish on copper material. The PV14-6F-E boasts a brazed seam for enhanced durability and a serrated termination for superior wire grip. Its overall length is 0.840 inches (21.34mm) with an outer width of 0.280 inches (7.11mm). This free hanging (in-line) mounting type terminal is supplied in bulk packaging and is commonly utilized in industrial automation, telecommunications, and automotive applications where reliable wire termination is critical.
Additional Information
Series: Pan-Term®RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Features | Brazed Seam, Serrated Termination |
| Packaging | Bulk |
| Contact Finish | Tin |
| Color | Blue |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 14-16 AWG |
| Insulation | Insulated |
| Terminal Type | Standard |
| Stud/Tab Size | 6 Stud |
| Length - Overall | 0.840"" (21.34mm) |
| Termination | Crimp |
| Width - Outer Edges | 0.280"" (7.11mm) |
| Contact Material | Copper |
Request a Quote
