PV14-14FB-3K
CONN SPADE TERM 14-16AWG #1/4Manufacturer: Panduit Corp
Categories: Spade Connectors
Quality Control: Learn More

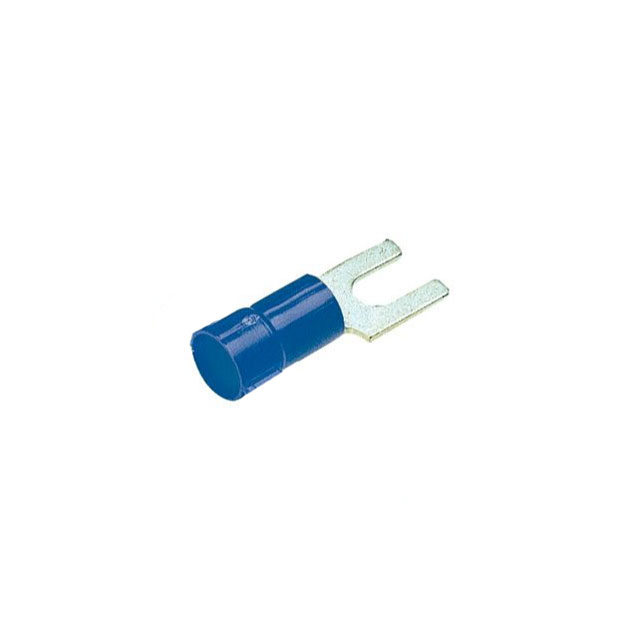

Panduit Corp Pan-Term® PV14-14FB-3K is an insulated spade terminal connector designed for robust electrical connections. This blue, tin-plated copper component accepts wire gauges from 14 to 16 AWG and features a 1/4 stud size for secure mounting. The crimp termination ensures reliable connectivity in free-hanging (in-line) applications. With an overall length of 1.030 inches and a width of 0.440 inches, this terminal is suitable for a variety of industrial and commercial electronics, including automotive and telecommunications systems. The product is supplied on Tape & Reel (TR) packaging for efficient automated assembly processes.
Additional Information
Series: Pan-Term®RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Contact Finish | Tin |
| Color | Blue |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 14-16 AWG |
| Insulation | Insulated |
| Terminal Type | Standard |
| Stud/Tab Size | 1/4 Stud |
| Length - Overall | 1.030"" (26.16mm) |
| Termination | Crimp |
| Width - Outer Edges | 0.440"" (11.18mm) |
| Contact Material | Copper |
