PV14-10LFN-M
CONN SPADE TERM 14-16AWG #10 BLUManufacturer: Panduit Corp
Categories: Spade Connectors
Quality Control: Learn More

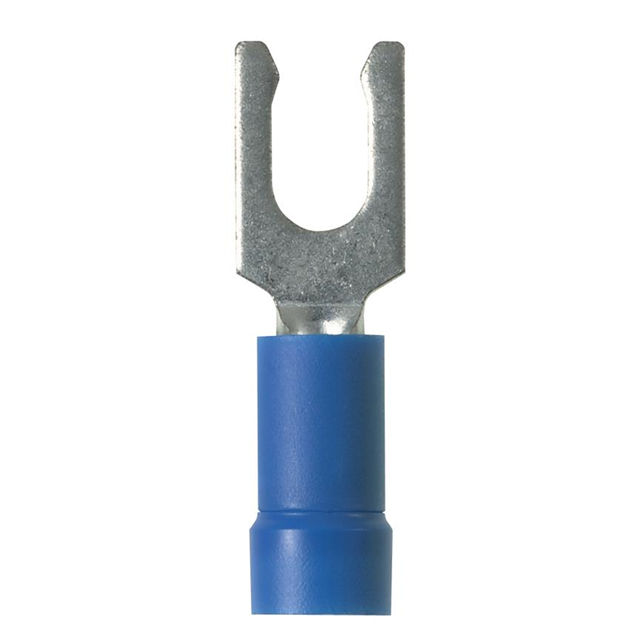

Panduit Corp Pan-Term® PV14-10LFN-M is a blue, insulated spade terminal connector designed for crimp termination. This component features a brazed seam for enhanced durability and serrated termination for secure wire grip, compatible with 14-16 AWG wire. The tin-plated copper contact ensures reliable conductivity. With a 10 stud size and a free-hanging, in-line mounting type, this terminal is suitable for various industrial applications including automotive, industrial automation, and telecommunications. The overall length is 0.970 inches (24.64mm) and the outer width is 0.290 inches (7.37mm). This product is supplied in bulk packaging.
Additional Information
Series: Pan-Term®RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Brazed Seam, Serrated Termination |
| Packaging | Bulk |
| Contact Finish | Tin |
| Color | Blue |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 14-16 AWG |
| Insulation | Insulated |
| Terminal Type | Spring, Snap |
| Stud/Tab Size | 10 Stud |
| Length - Overall | 0.970"" (24.64mm) |
| Termination | Crimp |
| Width - Outer Edges | 0.290"" (7.37mm) |
| Contact Material | Copper |
