PV14-10FX-M
CONN SPADE TERM 14-16AWG #10 BLUManufacturer: Panduit Corp
Categories: Spade Connectors
Quality Control: Learn More

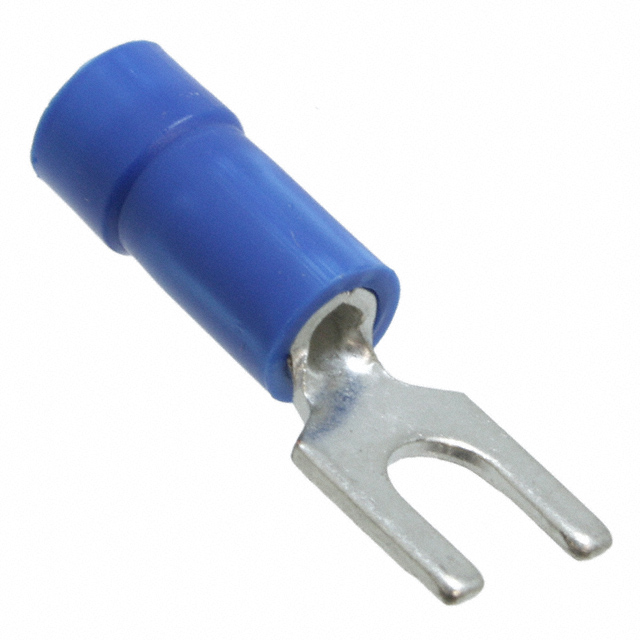

The Panduit Corp PV14-10FX-M is a blue, insulated Spade Terminal Connector from the Pan-Term® series. Designed for reliable crimp termination of 14-16 AWG wire, this component features a 10 Stud size and a copper contact material with a tin finish. Key attributes include a brazed seam for enhanced durability and serrated termination for superior wire grip. The overall length is 0.970 inches (24.64mm) with a width of 0.340 inches (8.64mm). This free-hanging (in-line) terminal is suitable for applications in industrial automation, power distribution, and automotive systems where secure wire connections are critical. It is supplied in bulk packaging.
Additional Information
Series: Pan-Term®RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Brazed Seam, Serrated Termination |
| Packaging | Bulk |
| Contact Finish | Tin |
| Color | Blue |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 14-16 AWG |
| Insulation | Insulated |
| Terminal Type | Standard |
| Stud/Tab Size | 10 Stud |
| Length - Overall | 0.970"" (24.64mm) |
| Termination | Crimp |
| Width - Outer Edges | 0.340"" (8.64mm) |
| Contact Material | Copper |
Request a Quote
