PV14-10FF-C
CONN SPADE TERM 14-16AWG #10 BLUManufacturer: Panduit Corp
Categories: Spade Connectors
Quality Control: Learn More

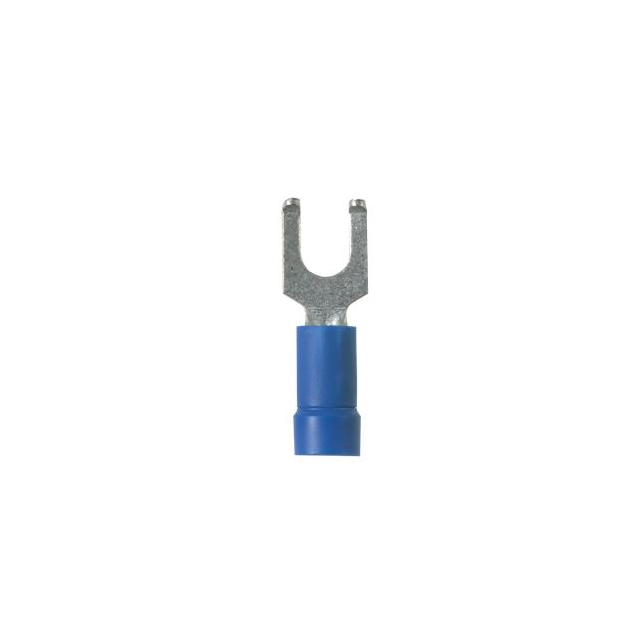

Panduit Corp Pan-Term® PV14-10FF-C is a blue, insulated spade terminal connector designed for crimp termination of 14-16 AWG wire. This component features a flanged terminal type with a 10 stud size, facilitating secure connections. Constructed from copper with a tin contact finish, it offers excellent conductivity. The brazed seam construction enhances durability, making it suitable for demanding applications. Its free hanging (in-line) mounting type simplifies installation. This spade terminal is widely utilized in industrial automation, telecommunications, and power distribution systems. Packaged in bulk, the overall length is 0.940 inches (23.88mm) with an outer edge width of 0.350 inches (8.89mm).
Additional Information
Series: Pan-Term®RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Brazed Seam |
| Packaging | Bulk |
| Contact Finish | Tin |
| Color | Blue |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 14-16 AWG |
| Insulation | Insulated |
| Terminal Type | Flanged |
| Stud/Tab Size | 10 Stud |
| Length - Overall | 0.940"" (23.88mm) |
| Termination | Crimp |
| Width - Outer Edges | 0.350"" (8.89mm) |
| Contact Material | Copper |
