PV10-8LFX-D
CONN SPADE TERM 10-12AWG #8 YELManufacturer: Panduit Corp
Categories: Spade Connectors
Quality Control: Learn More

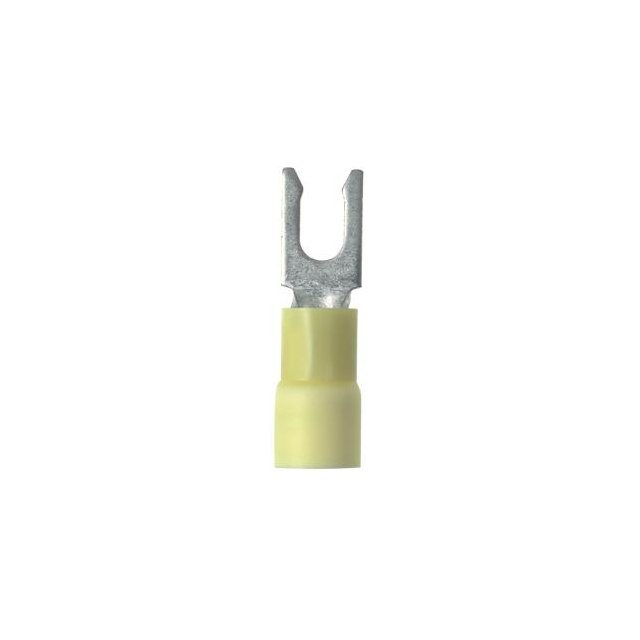

Panduit Corp Pan-Term® PV10-8LFX-D is a yellow, insulated spade terminal connector designed for 10-12 AWG wire. This crimp-style terminal features a tin-plated copper contact with a serrated termination for enhanced wire grip. It is specifically engineered for an 8 stud size and offers a secure snap-in terminal type. The overall length is 1.120 inches (28.45mm) with an outer width of 0.300 inches (7.62mm). Supplied in bulk packaging, this component is suitable for applications in the automotive and industrial sectors demanding reliable electrical connections.
Additional Information
Series: Pan-Term®RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Serrated Termination |
| Packaging | Bulk |
| Contact Finish | Tin |
| Color | Yellow |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 10-12 AWG |
| Insulation | Insulated |
| Terminal Type | Spring, Snap |
| Stud/Tab Size | 8 Stud |
| Length - Overall | 1.120"" (28.45mm) |
| Termination | Crimp |
| Width - Outer Edges | 0.300"" (7.62mm) |
| Contact Material | Copper |
