PV10-14LFX-L
CONN SPADE TERM 10-12AWG #1/4Manufacturer: Panduit Corp
Categories: Spade Connectors
Quality Control: Learn More

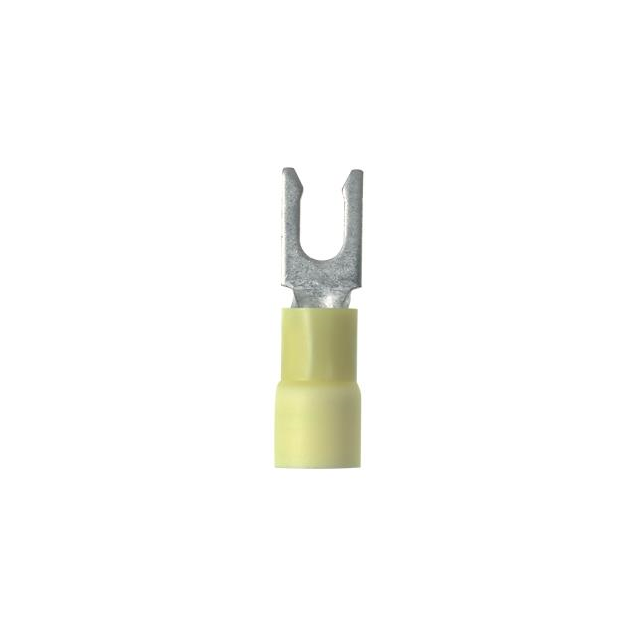

Panduit Corp Pan-Term® PV10-14LFX-L is a yellow, insulated spade terminal connector designed for 10-12 AWG wire. This crimp-style terminal features a tin-plated copper contact material with serrated termination for enhanced wire retention. The 1/4 stud size ensures secure fastening. Its free-hanging, in-line mounting type is suitable for a variety of industrial and commercial applications, including automotive, telecommunications, and industrial control systems. The overall length is 1.250 inches (31.75mm) with an outer width of 0.460 inches (11.68mm). This component is supplied in bulk packaging.
Additional Information
Series: Pan-Term®RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Serrated Termination |
| Packaging | Bulk |
| Contact Finish | Tin |
| Color | Yellow |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 10-12 AWG |
| Insulation | Insulated |
| Terminal Type | Spring, Snap |
| Stud/Tab Size | 1/4 Stud |
| Length - Overall | 1.250"" (31.75mm) |
| Termination | Crimp |
| Width - Outer Edges | 0.460"" (11.68mm) |
| Contact Material | Copper |
