PV10-14LF-D
CONN SPADE TERM 10-12AWG #1/4Manufacturer: Panduit Corp
Categories: Spade Connectors
Quality Control: Learn More

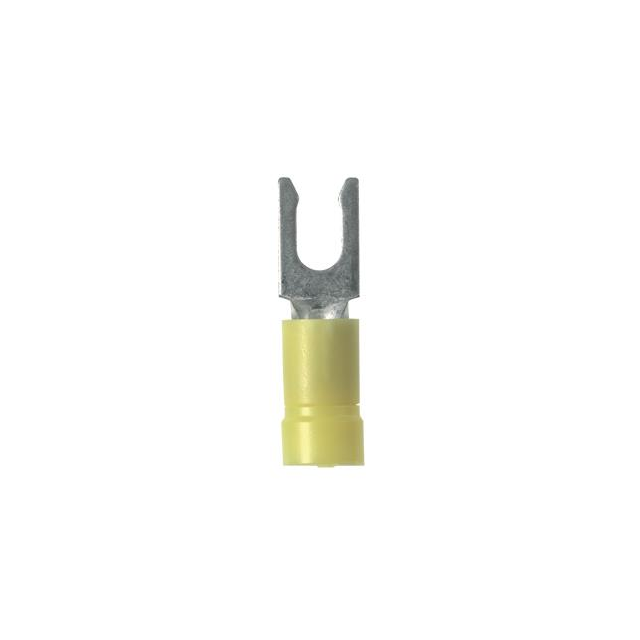

Panduit Corp Pan-Term® PV10-14LF-D is a yellow, insulated spade terminal connector designed for crimp termination. This component is engineered for wire gauges ranging from 10 to 12 AWG, accommodating a 1/4 stud size. Featuring a copper contact material with a tin finish and serrated termination for enhanced conductivity and grip, the PV10-14LF-D offers a robust connection. Its construction supports free-hanging, in-line mounting. The overall length is 1.190 inches (30.23mm) with an outer width of 0.460 inches (11.68mm). This terminal is suitable for applications across industrial automation and telecommunications sectors. It is supplied in bulk packaging.
Additional Information
Series: Pan-Term®RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Serrated Termination |
| Packaging | Bulk |
| Contact Finish | Tin |
| Color | Yellow |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 10-12 AWG |
| Insulation | Insulated |
| Terminal Type | Spring, Snap |
| Stud/Tab Size | 1/4 Stud |
| Length - Overall | 1.190"" (30.23mm) |
| Termination | Crimp |
| Width - Outer Edges | 0.460"" (11.68mm) |
| Contact Material | Copper |
