PV10-14FX-L
CONN SPADE TERM 10-12AWG #1/4Manufacturer: Panduit Corp
Categories: Spade Connectors
Quality Control: Learn More

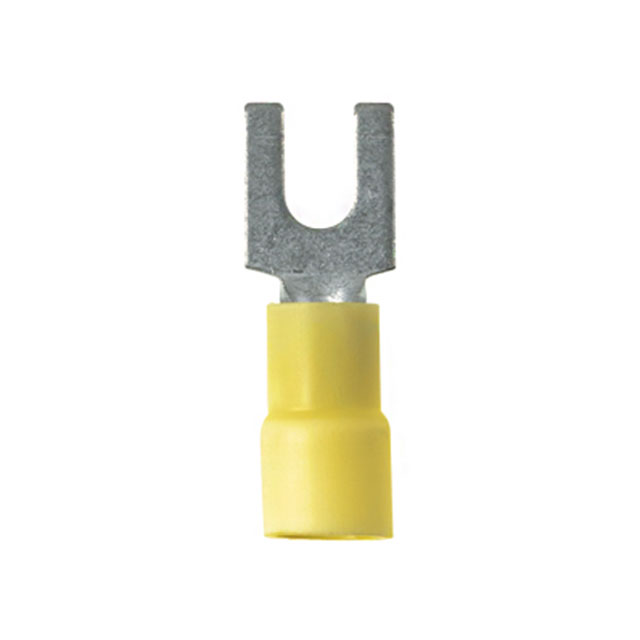

Panduit Corp Pan-Term® PV10-14FX-L is a yellow, insulated spade terminal connector designed for crimp termination of 10-12 AWG wire. This component features a 1/4 stud size and is constructed from copper with a tin contact finish. Key features include a brazed seam for enhanced durability and serrated termination to ensure positive wire contact. The overall length is 1.220 inches (30.99mm) with an outer width of 0.500 inches (12.70mm). This standard terminal type is suitable for free-hanging (in-line) mounting. It is commonly utilized in industrial automation, power distribution, and automotive applications. The PV10-14FX-L is supplied in bulk packaging.
Additional Information
Series: Pan-Term®RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Brazed Seam, Serrated Termination |
| Packaging | Bulk |
| Contact Finish | Tin |
| Color | Yellow |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 10-12 AWG |
| Insulation | Insulated |
| Terminal Type | Standard |
| Stud/Tab Size | 1/4 Stud |
| Length - Overall | 1.220"" (30.99mm) |
| Termination | Crimp |
| Width - Outer Edges | 0.500"" (12.70mm) |
| Contact Material | Copper |
